Differential Side Retainer Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: Perform this procedure only when replacing the LH side.
  2. Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>DIFFERENTIAL GEAR OIL>REPLACEMENT .
  3. Remove the front drive shaft. Ref. to DRIVE SHAFT SYSTEM>FRONT DRIVE SHAFT>REMOVAL .

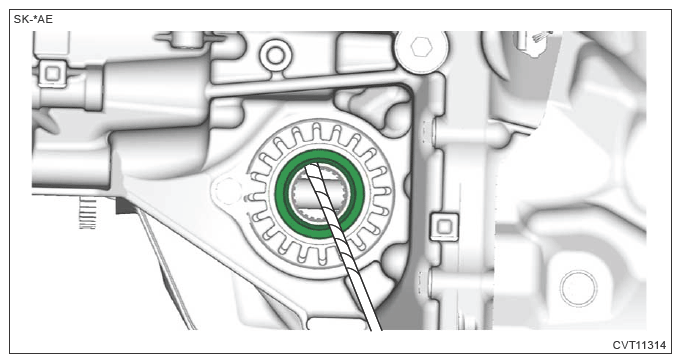

  4. Remove the differential side retainer oil seal using a flat tip screwdriver wrapped with protection tape, etc.
    G13225670Courtesy of SUBARU OF AMERICA, INC.
  5. Install the new differential side retainer oil seal using the ST.
    NOTE:
    • Apply differential gear oil to the differential side retainer oil seal lip.
    • Since the differential side retainer oil seal has an identification mark (R or L), be careful not to mix up the RH and LH when installing.

    Preparation tool:

    ST: DIFFERENTIAL SIDE OIL SEAL INSTALLER (18675AA000)

    G08317781Courtesy of SUBARU OF AMERICA, INC.
  6. Install the front drive shaft. Ref. to DRIVE SHAFT SYSTEM>FRONT DRIVE SHAFT>INSTALLATION .
  7. Fill differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TH2A)>DIFFERENTIAL GEAR OIL>REPLACEMENT .
  8. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
