Shift Link Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>SWITCHES AND HARNESS>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  4. Remove the extension case assembly.
  5. Remove the center differential and transfer driven gear as a unit. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>TRANSFER DRIVEN GEAR>REMOVAL .

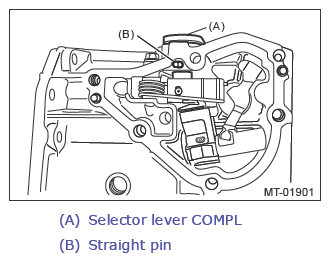

  6. Pull out the straight pin.
    G13604604Courtesy of SUBARU OF AMERICA, INC.

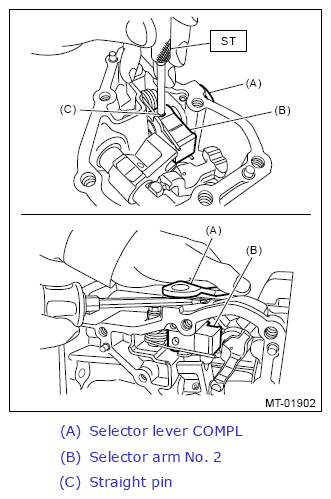

  7. Use the ST to remove the straight pin, and remove the selector lever COMPL.

    Preparation tool:

    ST: REMOVER (398791700)

    G13604605Courtesy of SUBARU OF AMERICA, INC.
  8. Pull out the selector arm No. 2.
    G13604606Courtesy of SUBARU OF AMERICA, INC.

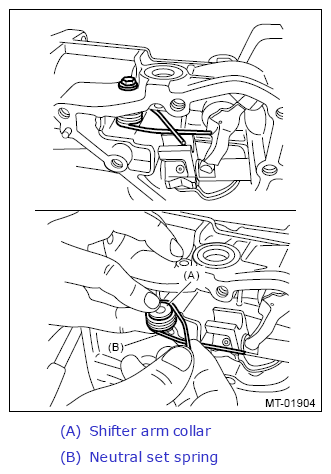

  9. Remove the bolts and remove the shifter arm collar and neutral set spring.
    G13604607Courtesy of SUBARU OF AMERICA, INC.

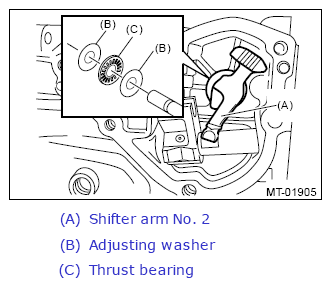

  10. Remove the shifter arm No. 2, adjusting washers and thrust bearing.
    G13604608Courtesy of SUBARU OF AMERICA, INC.

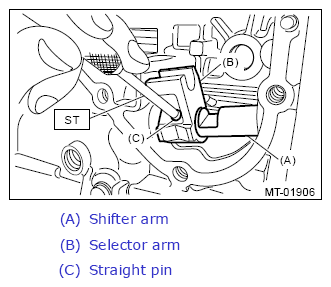

  11. Use the ST to remove the straight pin, and remove the shifter arm and selector arm.

    Preparation tool:

    ST: REMOVER (398791700)

    G13604609Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the oil seal using a screwdriver wrapped with tape, etc.
    NOTE: The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for removing the shifter arm No. 2.
    G13604610Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the needle bearing by using a tube with the diameter of 20 mm (0.79 in) or 21 mm (0.83 in) and the ST.

    Preparation tool:

    ST: COMPRESSOR SHAFT (18763AA000)

    G07915124Courtesy of SUBARU OF AMERICA, INC.
    G09482620Courtesy of SUBARU OF AMERICA, INC.
  14. Set ST1, ST2 and the transfer case to a press.
    NOTE:
    • Set the ST2 under ST1.
    • Set the transfer case so that the hole for shifter arm is positioned vertically.

    Preparation tool:

    ST1: CYLINDER HEAD TABLE (498267300)

    ST2: CYLINDER HEAD TABLE (498267200)

    G07915126Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the roller bearing by using a round bar with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G07915127Courtesy of SUBARU OF AMERICA, INC.

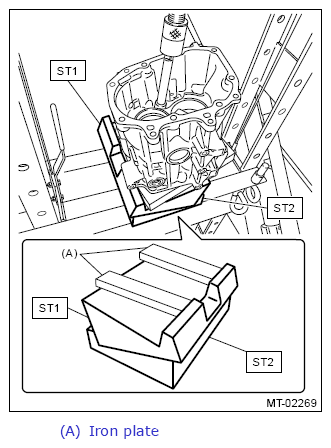

  16. Flip over the transfer case, and set an iron plate between transfer case and ST (CYLINDER HEAD TABLE).
    NOTE:
    • Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between ST (CYLINDER HEAD TABLE) and transfer case.
    • Set the iron plate so that the transfer case knock pin does not ride on the iron plate.
  17. Remove the roller bearing by using a tube with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G13604615Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the shift accent plunger and the check ball spring.
    G13604616Courtesy of SUBARU OF AMERICA, INC.
