DTC P0C76-00: Hybrid/EV Battery System Discharge Time Too Long: Notes
WARNING: This page is about a different variant/trim than selected.
1. -
Outline of diagnosis:
Voltage (VH) of Inside of inverter does not decrease in spite of discharge
(Discharge: Offset of residual pressure on the high voltage side after READY OFF)
(1 trip detection logic)
Trouble symptom:
Hybrid system stopped

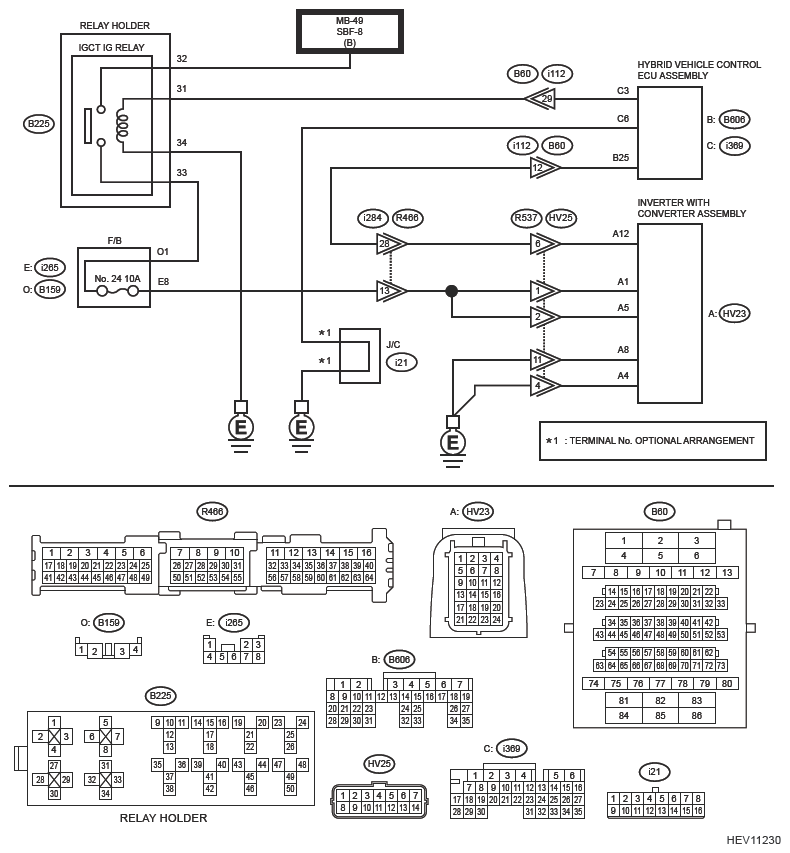

Wiring diagram:
Hybrid system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>HYBRID ELECTRIC VEHICLE SYSTEM>WIRING DIAGRAM .
CAUTION:
Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .
- CHECK DTC
.
Read the following DTCs using Subaru Select Monitor. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) . Ref. to P-HEV DRIVE MOTOR (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
- P-HEV Hybrid Powertrain Control
- P-HEV Drive Motor
NOTE:Malfunction contents System Related DTC Microcomputer malfunction P-HEV Hybrid Powertrain Control P060647 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR WATCHDOG/SAFETY MCU FAILURE P060687 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR TO MONITORING PROCESSOR MISSING MESSAGE P060A47 HYBRID/EV POWERTRAIN CONTROL MODULE MONITORING PROCESSOR WATCHDOG/SAFETY MCU FAILURE P060A87 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR FROM MONITORING PROCESSOR MISSING MESSAGE P0A1B49 DRIVE MOTOR "A" CONTROL MODULE INTERNAL ELECTRONIC FAILURE P1C9E9F HYBRID/EV SYSTEM RESET STUCK OFF P-HEV Drive Motor P0A1B1F GENERATOR CONTROL MODULE CIRCUIT INTERMITTENT P0A1A47 GENERATOR CONTROL MODULE WATCHDOG/SAFETY MC FAILURE P0A1A49 GENERATOR CONTROL MODULE INTERNAL ELECTRONIC FAILURE P1C2A1C GENERATOR A/D CONVERTER CIRCUIT CIRCUIT VOLTAGE OUT OF RANGE P1C2A49 GENERATOR A/D CONVERTER CIRCUIT INTERNAL ELECTRONIC FAILURE P1C2B1C DRIVE MOTOR "A" CONTROL MODULE A/D CONVERTER CIRCUIT VOLTAGE OUT OF RANGE P1C2B49 DRIVE MOTOR "A" CONTROL MODULE A/D CONVERTER CIRCUIT INTERNAL ELECTRONIC FAILURE P1CAC49 GENERATOR POSITION SENSOR INTERNAL ELECTRONIC FAILURE P1CAD49 DRIVE MOTOR "A" POSITION SENSOR INTERNAL ELECTRONIC FAILURE P1CAF38 GENERATOR POSITION SENSOR REF SIGNAL CYCLE MALFUNCTION SIGNAL FREQUENCY INCORRECT P1CB038 DRIVE MOTOR "A" POSITION SENSOR REF SIGNAL FREQUENCY INCORRECT P313383 COMMUNICATION ERROR FROM GENERATOR TO DRIVE MOTOR "A" VALUE OF SIGNAL PROTECTION CALCULATION INCORRECT P313386 COMMUNICATION ERROR FROM GENERATOR TO DRIVE MOTOR "A" SIGNAL INVALID P313387 COMMUNICATION ERROR FROM GENERATOR TO DRIVE MOTOR "A" MISSING MESSAGE Power supply system malfunction P-HEV Drive Motor P06D61C GENERATOR CONTROL MODULE OFFSET POWER CIRCUIT VOLTAGE OUT OF RANGE P06B01C GENERATOR CONTROL MODULE POSITION SENSOR REF POWER SOURCE CIRCUIT VOLTAGE OUT OF RANGE Communication system malfunction P-HEV Hybrid Powertrain Control P312387 LOST COMMUNICATION WITH DRIVE MOTOR CONTROL MODULE "A" FROM HYBRID/EV CONTROL MODULE MISSING MESSAGE Sensor and actuator circuit malfunction P-HEV Hybrid Powertrain Control P0AD911 HYBRID/EV BATTERY POSITIVE CONTACTOR CIRCUIT SHORT TO GROUND P0AD915 HYBRID/EV BATTERY POSITIVE CONTACTOR CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN P0ADD11 HYBRID/EV BATTERY NEGATIVE CONTACTOR CIRCUIT SHORT TO GROUND P0ADD15 HYBRID/EV BATTERY NEGATIVE CONTACTOR CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN P0AE411 HYBRID/EV BATTERY PRE-CHARGE CONTACTOR CIRCUIT SHORT TO GROUND P0AE415 HYBRID/EV BATTERY PRE-CHARGE CONTACTOR CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN P-HEV Drive Motor P0A3F16 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT VOLTAGE BELOW THRESHOLD P0A4B16 GENERATOR POSITION SENSOR CIRCUIT VOLTAGE BELOW THRESHOLD P0A4B21 GENERATOR POSITION SENSOR SIGNAL AMPLITUDE < MINIMUM P0A4B22 GENERATOR POSITION SENSOR SIGNAL AMPLITUDE>MAXIMUM P0C5013 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "A" CIRCUIT OPEN P0C5016 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "A" CIRCUIT VOLTAGE BELOW THRESHOLD P0C5017 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "A" CIRCUIT VOLTAGE ABOVE THRESHOLD P0C5A13 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "B" CIRCUIT OPEN P0C5A16 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "B" CIRCUIT VOLTAGE BELOW THRESHOLD P0C5A17 DRIVE MOTOR "A" POSITION SENSOR CIRCUIT "B" CIRCUIT VOLTAGE ABOVE THRESHOLD P0C6413 GENERATOR POSITION SENSOR CIRCUIT "A" CIRCUIT OPEN P0C6416 GENERATOR POSITION SENSOR CIRCUIT "A" CIRCUIT VOLTAGE BELOW THRESHOLD P0C6417 GENERATOR POSITION SENSOR CIRCUIT "A" CIRCUIT VOLTAGE ABOVE THRESHOLD P0C6913 GENERATOR POSITION SENSOR CIRCUIT "B" CIRCUIT OPEN P0C6916 GENERATOR POSITION SENSOR CIRCUIT "B" CIRCUIT VOLTAGE BELOW THRESHOLD P0C6917 GENERATOR POSITION SENSOR CIRCUIT "B" CIRCUIT VOLTAGE ABOVE THRESHOLD System malfunction P-HEV Hybrid Powertrain Control P0D2D1C DRIVE MOTOR "A" INVERTER VOLTAGE SENSOR VOLTAGE OUT OF RANGE P1C8349 HIGH VOLTAGE POWER RESOURCE CIRCUIT VOLTAGE SENSOR AFTER BOOSTING MALFUNCTION P-HEV Drive Motor P0D2D16 DRIVE MOTOR "A" INVERTER VOLTAGE SENSOR (VH) CIRCUIT VOLTAGE BELOW THRESHOLD P0D2D17 DRIVE MOTOR "A" INVERTER VOLTAGE SENSOR (VH) CIRCUIT VOLTAGE ABOVE THRESHOLD P1CB69E DRIVE MOTOR "A" INVERTER VOLTAGE SENSOR (VH) STUCK ON When "Only DTC P0C7600 is displayed" or "DTC other than above is displayed", go to A.
When DTCs related to [P-HEV Hybrid Powertrain Control] mentioned above are simultaneously displayed, go to B.
When DTCs related to [P-HEV Drive Motor] mentioned above are simultaneously displayed, go to C.
Yes :
- Go to 2.
- Perform the diagnosis for the simultaneously displayed DTCs.NOTE: If more than one DTC is simultaneously displayed, perform the diagnosis in the order described in the above.
- Perform the diagnosis for the simultaneously displayed DTCs.
NOTE: If more than one DTC is simultaneously displayed, perform the diagnosis in the order described in the above.No : -
- CHECK Shut Down Signal Circuit
.
Check Shut Down Signal Circuit. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DIAGNOSTICS WITH PHENOMENON>INSPECTION>SHUT DOWN SIGNAL CIRCUIT .
Is the check result of Shut Down Signal Circuit OK?
Yes : Replace Inverter with converter assembly. Ref. to HYBRID ELECTRIC VEHICLE>INVERTER AND CONVERTER ASSEMBLY .
No : Repair Shut Down Signal Circuit.
