When The Whole EGR System Is Not Removed

WARNING: This page is about a different variant/trim than selected.

CAUTION: If the engine coolant is spilt over the engine or the exhaust pipe, completely wipe it off to avoid emission of smoke or causing a fire.

NOTE: EGR system consists of EGR control valve, EGR pipe, EGR cooler and EGR temperature sensor.

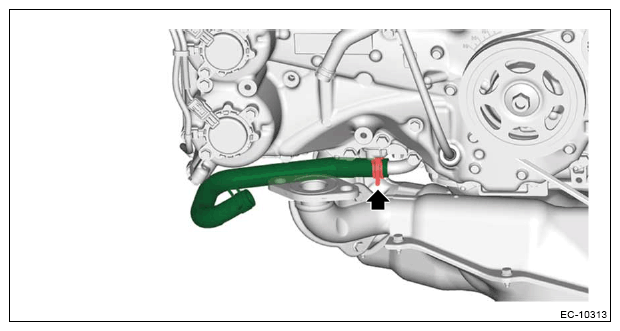

Install the water hose.

Courtesy of SUBARU OF AMERICA, INC.

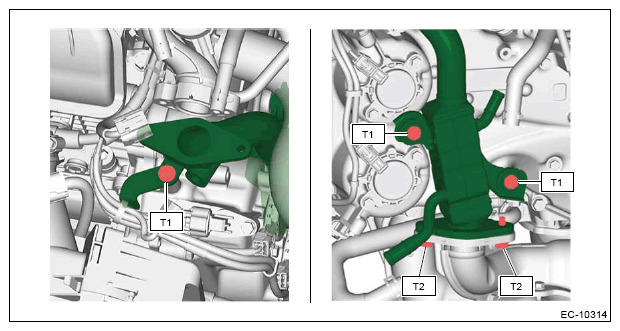

Using a new gasket, install the EGR cooler.
Tightening torque:

T1: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

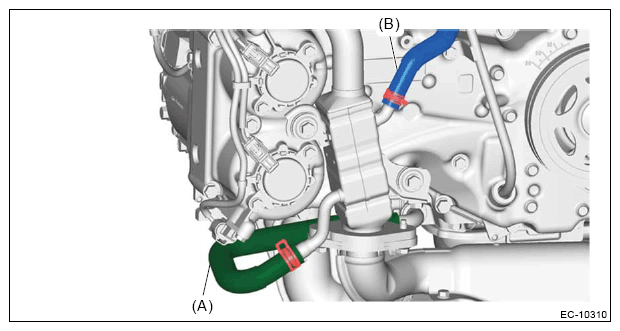

Connect the water hose (A) and the water hose (B).

Courtesy of SUBARU OF AMERICA, INC.

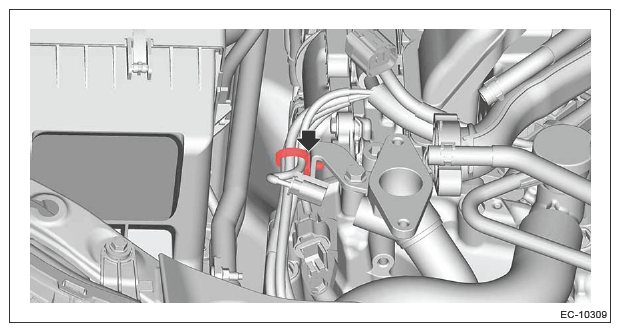

Install the clips.

Courtesy of SUBARU OF AMERICA, INC.
When the EGR temperature sensor is removed from the EGR cooler
NOTE: When the EGR temperature sensor is removed from the EGR cooler, also perform the following steps.
1. Install the EGR temperature sensor. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (HEV))>EGR TEMPERATURE SENSOR>INSTALLATION .
When the EGR temperature sensor is not removed from the EGR cooler
NOTE: When the EGR temperature sensor is not removed from the EGR cooler, also perform the following steps.
1. Connect the EGR temperature sensor connector.
Install the EGR control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO (HEV))>EGR CONTROL VALVE>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
Fill the engine coolant (engine side). Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>ENGINE SIDE .
