EGR Control Valve: Installation

WARNING: This page is about a different variant/trim than selected.

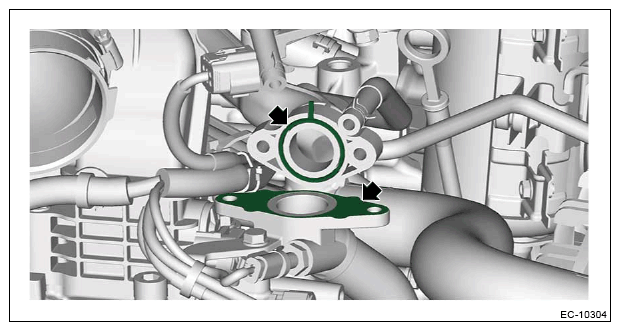

  1. Set a new gasket and O-rings.
    G13231131Courtesy of SUBARU OF AMERICA, INC.
  2. Install the EGR control valve.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13231130Courtesy of SUBARU OF AMERICA, INC.
  3. Attach the bracket.

    Tightening torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)

    G13231129Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the preheater hose (B) and preheater hose (C).
  5. Connect the connector (A).
    G13231128Courtesy of SUBARU OF AMERICA, INC.
  6. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>AIR INTAKE DUCT>INSTALLATION .
  7. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  8. Fill the engine coolant (engine side). Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT>ENGINE SIDE .
