DTC P162B-87: Lost Communication With Auxiliary Battery Monitor Module Missing Message: Notes

1. -

Outline of diagnosis:

Diagnosis condition:

• IG ON

Malfunction condition:

• Hybrid vehicle control ECU assembly or Battery (12V) sensor is unable to receive LIN communication

Faulty period:

• Continues for 17 minutes or more

Trip count:

• One trip

Trouble symptom:

DC/DC Converter command fixed

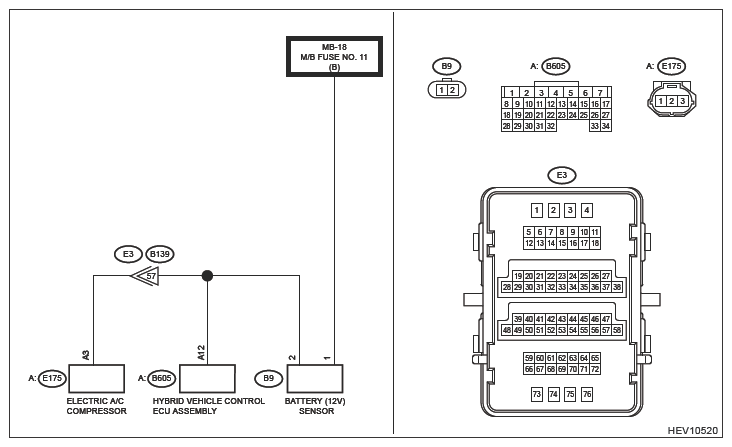

Wiring diagram:

Hybrid system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>HYBRID ELECTRIC VEHICLE SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

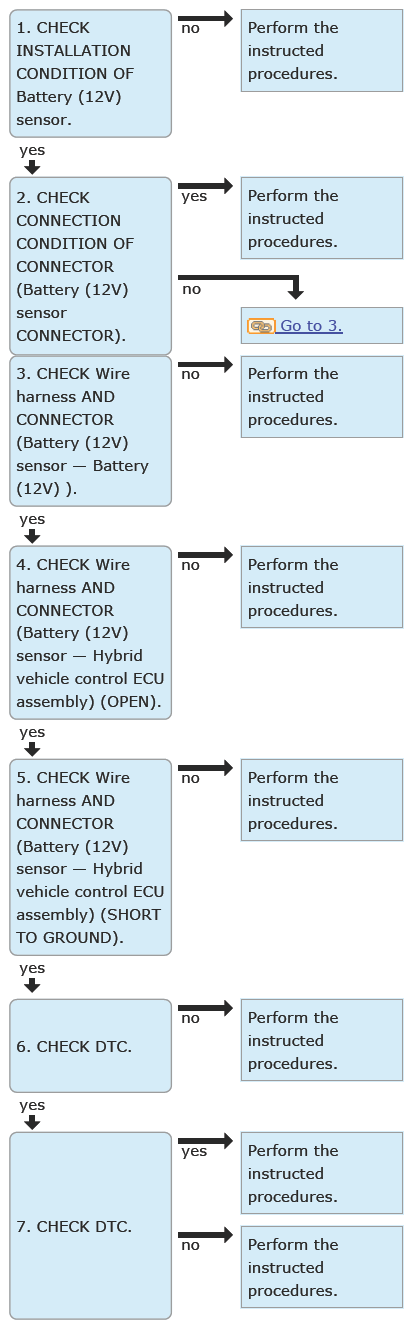

1. CHECK INSTALLATION CONDITION OF Battery (12V) sensor  .

   Check the installation condition of Battery (12V) sensor. Ref. to STARTING/CHARGING SYSTEMS (H4DO (HEV))>BATTERY SENSOR .

   Is Battery (12V) sensor securely installed?

   Yes  : Go to  2.

   No  : Securely install Battery (12V) sensor.

2. CHECK CONNECTION CONDITION OF CONNECTOR (Battery (12V) sensor CONNECTOR)  .

   Check the connecting condition of connector (B9) in Battery (12V) sensor and check the relevant terminals for contact pressure, deformation and intrusion of water or foreign matter. Ref. to STARTING/CHARGING SYSTEMS (H4DO (HEV))>BATTERY SENSOR .

   Is there looseness at the connector mating, or any poor contact, deformation or intrusion of water or foreign matter at the relevant terminals?

   Yes  : Connect the connector securely. Or repair the poor contact of connector.

   No  : Go to  3.

3. CHECK Wire harness AND CONNECTOR (Battery (12V) sensor - Battery (12V))  .
   1. Turn the ignition switch to OFF.
   2. Disconnect Battery (12V) sensor connector (B9).
   3. Using a tester, measure the voltage between Battery (12V) sensor connector and chassis ground.

      Connector & terminal

      (B9) No. 2 (+) - Chassis ground (-):

   Is the voltage 11 - 14 V?

   Yes  : Go to  4.

   No  : Repair or replace Wire harness between Battery (12V) sensor connector and chassis ground.

4. CHECK Wire harness AND CONNECTOR (Battery (12V) sensor - Hybrid vehicle control ECU assembly) (OPEN)  .
   1. Disconnect Hybrid vehicle control ECU assembly connector (B605).
   2. Using a tester, measure the resistance between Battery (12V) sensor connector and Hybrid vehicle control ECU assembly connector.

      Connector & terminal

      (B9) No. 2 - (B605) No. 12:

   Is the resistance less than 1 Ω?

   Yes  : Go to  5.

   No  : Repair or replace Wire harness between Battery (12V) sensor connector and Hybrid vehicle control ECU assembly connector.

5. CHECK Wire harness AND CONNECTOR (Battery (12V) sensor - Hybrid vehicle control ECU assembly) (SHORT TO GROUND)  .
   1. Disconnect the Electric compressor ASSEMBLY connector.
   2. Using a tester, measure the resistance between Battery (12V) sensor connector and chassis ground.

      Connector & terminal

      (B9) No. 2 - Chassis ground:

   Is the resistance 10 kΩ or more?

   Yes  : Go to  6.

   No  : Repair or replace Wire harness between Battery (12V) sensor connector or Electric compressor ASSEMBLY and Hybrid vehicle control ECU assembly connector.

6. CHECK DTC  .
   1. Restore the vehicle to its original state.
   2. Using the Subaru Select Monitor, perform the clear memory of [P-HEV Hybrid Powertrain Control]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
   3. Turn to READY ON, and wait for 17 minutes or more.
   4. Read the DTC of [P-HEV Hybrid Powertrain Control] using the Subaru Select Monitor. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC P162B87 displayed?

   Yes  : Go to  7.

   No  : Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

   NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of Wire harness may be the cause.
7. CHECK DTC  .

   Read the DTC of [Air Conditioner] using the Subaru Select Monitor. Ref. to AIR CONDITIONER (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC B1498 displayed?

   Yes  : Replace Hybrid vehicle control ECU assembly. Ref. to HYBRID ELECTRIC VEHICLE>HYBRID POWERTRAIN CONTROL MODULE .

   No  : Replace Battery (12V) sensor. Ref. to STARTING/CHARGING SYSTEMS (H4DO (HEV))>BATTERY SENSOR .
