DTC P0D5C-00: Charger Input/Output Power Difference High: Notes

WARNING: This page is about a different variant/trim than selected.

1. -

Outline of diagnosis:

Battery input power (battery voltage x battery current)/charger input power was below 0.5 for a predetermined period of time.

(1 trip detection logic)

Trouble symptom:

Continued charging

Wiring diagram:

Hybrid system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>HYBRID ELECTRIC VEHICLE SYSTEM>WIRING DIAGRAM .

G13237939Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>GENERAL DESCRIPTION>CAUTION .

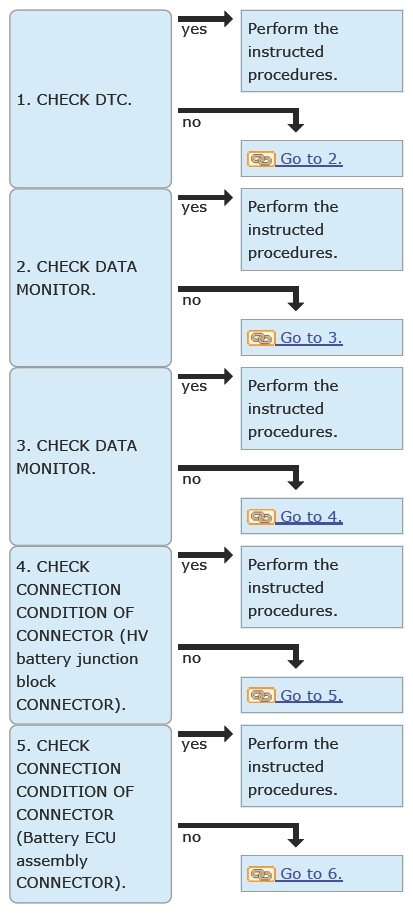

G13618050Courtesy of SUBARU OF AMERICA, INC.

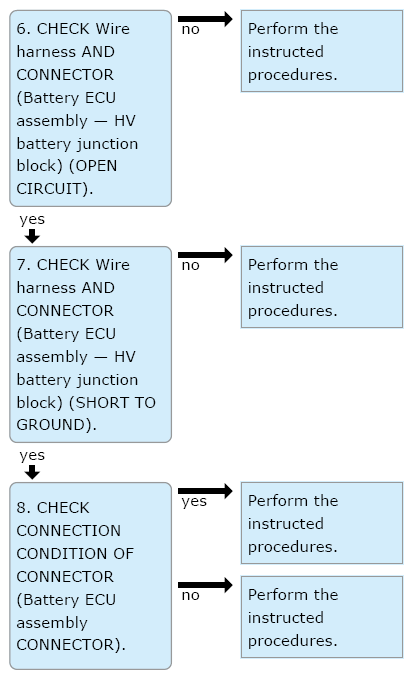

G13618051Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK DTC  .

    Read the DTC of [P-HEV Hybrid Powertrain Control] using the Subaru Select Monitor. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

    NOTE:
    Malfunction contents Related DTC
    Microcomputer malfunction P0A1F94 HYBRID/EV BATTERY ENERGY CONTROL MODULE UNEXPECTED OPERATION
    P0E2D00 HYBRID/EV BATTERY ENERGY CONTROL MODULE HYBRID/EV BATTERY MONITOR PERFORMANCE
    P060A47 HYBRID/EV POWERTRAIN CONTROL MODULE MONITORING PROCESSOR WATCHDOG/SAFETY MCU FAILURE
    P060B49 HYBRID/EV POWERTRAIN CONTROL MODULE A/D PROCESSING INTERNAL ELECTRONIC FAILURE
    P060B16 HYBRID/EV BATTERY ENERGY CONTROL MODULE A/D PROCESSING CIRCUIT VOLTAGE BELOW THRESHOLD
    P060687 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR TO MONITORING PROCESSOR MISSING MESSAGE
    P060A87 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR FROM MONITORING PROCESSOR MISSING MESSAGE
    P060B49 HYBRID/EV POWERTRAIN CONTROL MODULE A/D PROCESSING INTERNAL ELECTRONIC FAILURE
    P1C1F49 HYBRID/EV BATTERY CHARGER CONTROL MODULE A/D PROCESSING INTERNAL ELECTRONIC FAILURE
    Power supply system malfunction P1CED1C PLUG-IN CONTROL ECU POWER SUPPLY (+12.5V) CIRCUIT VOLTAGE OUT OF RANGE
    P1CF01C PLUG-IN CONTROL ECU POWER SUPPLY (-7.5V) CIRCUIT VOLTAGE OUT OF RANGE
    Communication system malfunction P060687 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR TO MONITORING PROCESSOR MISSING MESSAGE
    P060A87 HYBRID/EV POWERTRAIN CONTROL MODULE PROCESSOR FROM MONITORING PROCESSOR MISSING MESSAGE
    U011187 LOST COMMUNICATION WITH HYBRID/EV BATTERY ENERGY CONTROL MODULE "A" MISSING MESSAGE
    U029387 LOST COMMUNICATION WITH HYBRID POWERTRAIN CONTROL MODULE MISSING MESSAGE
    U019B87 LOST COMMUNICATION WITH HYBRID/EV BATTERY CHARGER CONTROL MODULE MISSING MESSAGE
    P0E5E87 PLUG-IN CONTROL MODULE PROCESSOR FROM HYBRID/EV BATTERY CHARGER CONTROL MODULE PROCESSOR MISSING MESSAGE
    Sensor and actuator circuit malfunction P0B231C HYBRID/EV BATTERY "A" VOLTAGE SENSOR VOLTAGE OUT OF RANGE
    P301A1C HYBRID BATTERY STACK 1 CELL VOLTAGE DETECTION VOLTAGE OUT OF RANGE
    P1A001C HYBRID BATTERY STACK 2 CELL VOLTAGE DETECTION VOLTAGE OUT OF RANGE
    P1A051C HYBRID BATTERY STACK 3 CELL VOLTAGE DETECTION VOLTAGE OUT OF RANGE
    P1A0A1C HYBRID BATTERY STACK 4 CELL VOLTAGE DETECTION VOLTAGE OUT OF RANGE
    P1A101C HYBRID BATTERY STACK 5 CELL VOLTAGE DETECTION VOLTAGE OUT OF RANGE
    P1AFD1C FLYING CAPACITOR/INTERNAL CONTROL MODULE HYBRID/EV BATTERY MONITOR VOLTAGE OUT OF RANGE
    P1C9F1C HYBRID/EV BATTERY CURRENT SENSOR FOR DRIVING CONTROL VOLTAGE OUT OF RANGE
    P1C9F15 HYBRID/EV BATTERY CURRENT SENSOR FOR DRIVING CONTROL CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN
    P1C9F11 HYBRID/EV BATTERY CURRENT SENSOR FOR DRIVING CONTROL CIRCUIT SHORT TO GROUND
    P0ABF00 HYBRID/EV BATTERY CURRENT SENSOR "A" CIRCUIT RANGE/PERFORMANCE
    P0A1F94 HYBRID/EV BATTERY ENERGY CONTROL MODULE UNEXPECTED OPERATION
    P0ABF11 HYBRID/EV BATTERY CURRENT SENSOR "A" CIRCUIT SHORT TO GROUND
    P0ABF15 HYBRID/EV BATTERY CURRENT SENSOR "A" CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN
    P0ABF28 HYBRID/EV BATTERY CURRENT SENSOR "A" SIGNAL BIAS LEVEL OUT OF RANGE/ZERO ADJUSTMENT FAILURE
    P1CBB14 HYBRID/EV BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT SHORT TO GROUND OR OPEN
    P1CBB12 HYBRID/EV BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT SHORT TO AUXILIARY BATTERY
    P0ABF2A HYBRID/EV BATTERY CURRENT SENSOR "A" SIGNAL STUCK IN RANGE
    P0B1362 HYBRID/EV BATTERY CURRENT SENSOR "A"/"B" SIGNAL COMPARE FAILURE
    P0B0E11 HYBRID/EV BATTERY CURRENT SENSOR "B" CIRCUIT SHORT TO GROUND
    P0B0E15 HYBRID/EV BATTERY CURRENT SENSOR "B" CIRCUIT SHORT TO AUXILIARY BATTERY OR OPEN
    P1CF662 CHARGING VOLTAGE SENSOR FOR MONITORING/CONTROL SIGNAL COMPARE FAILURE
    P0D3D16 HYBRID/EV BATTERY CHARGER INPUT VOLTAGE SENSOR FOR CONTROL CIRCUIT VOLTAGE BELOW THRESHOLD
    P0D3D17 HYBRID/EV BATTERY CHARGER INPUT VOLTAGE SENSOR FOR CONTROL CIRCUIT VOLTAGE ABOVE THRESHOLD
    P1C0016 VOLTAGE SENSOR AFTER BOOSTING BY PFC BOOSTING CIRCUIT CIRCUIT VOLTAGE BELOW THRESHOLD
    P1C1B00 PFC BOOSTING CIRCUIT MALFUNCTION
    P0D3828 HYBRID/EV BATTERY CHARGER INPUT CURRENT SENSOR CIRCUIT SIGNAL BIAS LEVEL OUT OF RANGE/ZERO ADJUSTMENT FAILURE
    P0D3814 HYBRID/EV BATTERY CHARGER INPUT CURRENT SENSOR CIRCUIT CIRCUIT SHORT TO GROUND OR OPEN
    P0D3812 HYBRID/EV BATTERY CHARGER INPUT CURRENT SENSOR CIRCUIT CIRCUIT SHORT TO AUXILIARY BATTERY

    Are any DTCs listed in the reference above displayed with P0D5C00?

    Yes  : Perform the diagnosis for the simultaneously displayed DTCs.

    NOTE: If more than one DTC is simultaneously displayed, perform the diagnosis in the order described in the above.

    No  : Go to  2.

  2. CHECK DATA MONITOR  .
    1. Using the Subaru Select Monitor, perform the clear memory of [P-HEV Hybrid Powertrain Control]. Ref. to COMMON (DIAG)>CLEAR MEMORY .
    2. Charge the battery.
    3. While charging the battery, display the following items in the [Data Monitor] of [P-HEV Hybrid Powertrain Control], using the Subaru Select Monitor. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DATA MONITOR .
      • Charger Input Power

    Is the voltage deviation between the system voltage and [Charger Input Power] 77 Vrms or more?

    (The system voltage indicates the outlet in the repair site or the power voltage used at the stand.)

    Yes  : Replace Electric vehicle charger assembly. Ref. to HYBRID ELECTRIC VEHICLE>ELECTRIC VEHICLE CHARGER .

    No  : Go to  3.

  3. CHECK DATA MONITOR  .

    While charging the battery, display the following items in the [Data Monitor] of [P-HEV Hybrid Powertrain Control], using the Subaru Select Monitor. Ref. to P-HEV HYBRID POWERTRAIN CONTROL (DIAGNOSTICS)>DATA MONITOR .

    • Hybrid Battery Voltage

    Is [Hybrid Battery Voltage] 96 V or less?

    Yes  : Replace HV battery. Ref. to HYBRID ELECTRIC VEHICLE>HIGH VOLTAGE BATTERY .

    No  : Go to  4.

  4. CHECK CONNECTION CONDITION OF CONNECTOR (HV battery junction block CONNECTOR)  .
    CAUTION: Make sure to wear insulated gloves and protective goggles during the work.
    1. Turn the ignition to OFF.
    2. Check that the Service plug is disconnected. Ref. to HYBRID ELECTRIC VEHICLE>SERVICE PLUG .
    3. Check the connecting condition of connector (HV54) in HV battery junction block and check the relevant terminals for contact pressure, deformation, intrusion of water or foreign matter, and trace of arc.

    Is there looseness at the connector mating, or any poor contact, deformation, intrusion of water or foreign matter, or trace of arc at the relevant terminals?

    Yes  : Connect the connector securely. Or, repair or replace the connector.

    No  : Go to  5.

  5. CHECK CONNECTION CONDITION OF CONNECTOR (Battery ECU assembly CONNECTOR)  .
    CAUTION: Make sure to wear insulated gloves and protective goggles during the work.
    1. Turn the ignition to OFF.
    2. Check the connecting condition of connector (HV42) in Battery ECU assembly and check the relevant terminals for contact pressure, deformation, intrusion of water or foreign matter, and trace of arc.

    Is there looseness at the connector mating, or any poor contact, deformation, intrusion of water or foreign matter, or trace of arc at the relevant terminals?

    Yes  : Connect the connector securely. Or repair the poor contact of connector.

    No  : Go to  6.

  6. CHECK Wire harness AND CONNECTOR (Battery ECU assembly - HV battery junction block) (OPEN CIRCUIT)  .
    CAUTION:
    • Make sure to wear insulated gloves and protective goggles during the work.
    • Never turn to READY ON with Service plug removed to prevent faults.
    1. Turn the ignition to OFF.
    2. Disconnect HV battery junction block connector (HV54).
    3. Disconnect Battery ECU assembly connector (HV42).
    4. Using a tester, measure the resistance between Battery ECU assembly connector and HV battery junction block (BATTERY CURRENT SENSOR) connector.

      Connector & terminal

      (HV42) No. 30 - (HV54) No. 2:

      (HV42) No. 31 - (HV54) No. 3:

      (HV42) No. 7 - (HV54) No. 4:

      (HV42) No. 8 - (HV54) No. 1:

    Is the resistance less than 1 Ω?

    Yes  : Go to  7.

    No  : Repair or replace Wire harness between Battery ECU assembly connector and HV battery junction block (BATTERY CURRENT SENSOR) connector.

  7. CHECK Wire harness AND CONNECTOR (Battery ECU assembly - HV battery junction block) (SHORT TO GROUND)  .
    1. Turn the ignition to OFF.
    2. Using a tester, measure the resistance between Battery ECU assembly connector and chassis ground.

      Connector & terminal

      (HV42) No. 30 - Chassis ground:

      (HV42) No. 31 - Chassis ground:

      (HV42) No. 7 - Chassis ground:

      (HV42) No. 8 - Chassis ground:

    Is the resistance less than 10 kΩ?

    Yes  : Go to  8.

    No  : Repair or replace Wire harness between Battery ECU assembly connector and HV battery junction block (BATTERY CURRENT SENSOR) connector.

  8. CHECK CONNECTION CONDITION OF CONNECTOR (Battery ECU assembly CONNECTOR)  .
    CAUTION: Make sure to wear insulated gloves and protective goggles during the work.

    Check the connecting condition of connectors (HV39), (HV40), (HV41), (HV38) and (HV37) in Battery ECU assembly, and check the relevant terminals for contact pressure, deformation, intrusion of water or foreign matters, and trace of arc.

    Is there looseness at the connector mating, or any poor contact, deformation, intrusion of water or foreign matter, or trace of arc at the relevant terminals?

    Yes  : Connect the connector securely. Or repair the poor contact of connector.

    No  : Replace Electric vehicle charger assembly. Ref. to HYBRID ELECTRIC VEHICLE>ELECTRIC VEHICLE CHARGER .
