Radiator Fan and Fan Motor Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>COLLECTOR COVER>REMOVAL .
  3. Collect the refrigerant. Ref. to AIR CONDITIONER (HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  4. Remove the inverter tank. Ref. to COOLING (H4DO (HEV))>INVERTER TANK>REMOVAL .
  5. Remove the lower side bolts (A) securing the radiator upper frame.

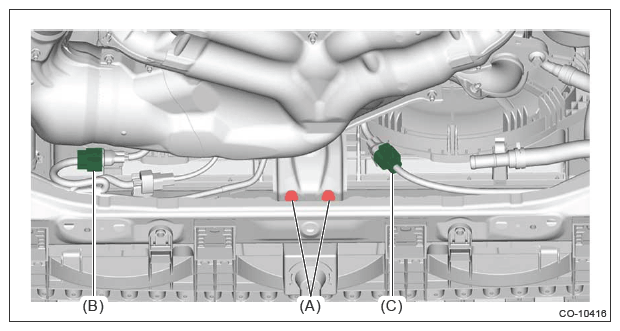

  6. Disconnect main fan motor connector (B) and sub fan motor connector (C).
    G13231270Courtesy of SUBARU OF AMERICA, INC.

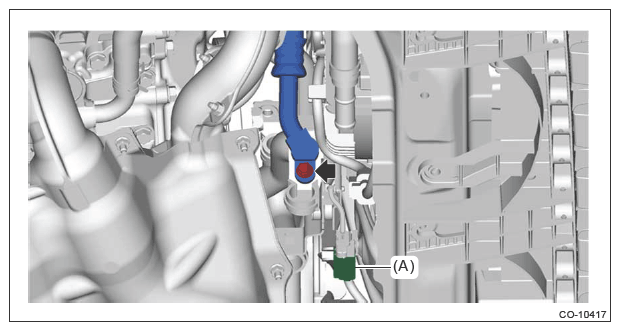

  7. Disconnect the hood switch connector (A).
  8. Disconnect the hose - pressure suction valve from the hose - pressure suction COMPL. Ref. to AIR CONDITIONER (HEV)>HOSE AND PIPE>REMOVAL>LOW PRESSURE VALVE HOSE .
    G13231271Courtesy of SUBARU OF AMERICA, INC.

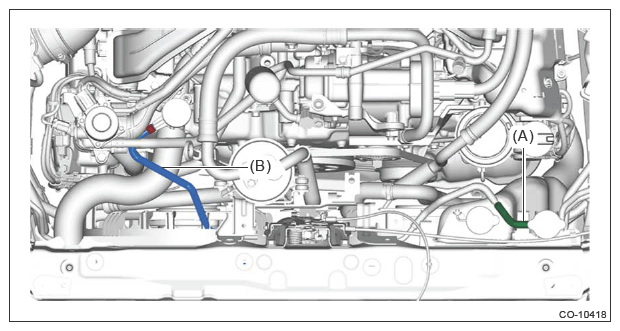

  9. Disconnect the over flow hose (A) from the radiator and disconnect the over flow hose (B) from the filler neck.
    G13231272Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the reservoir tank. Ref. to COOLING (H4DO (HEV))>RESERVOIR TANK>REMOVAL .
  11. Remove the front bumper. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

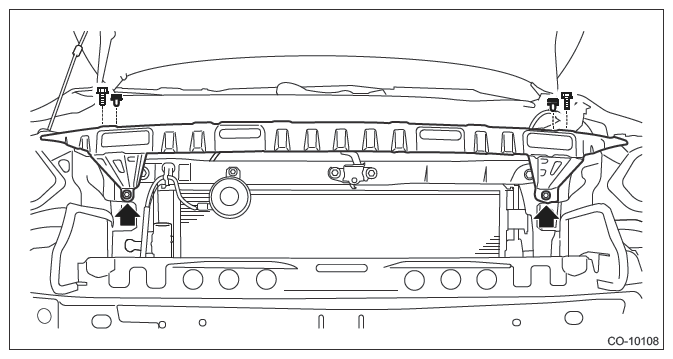

  12. Remove the bracket - bumper UPR.
    G11253598Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the front hood lock assembly. Ref. to SECURITY AND LOCKS>FRONT HOOD LOCK ASSEMBLY>REMOVAL .

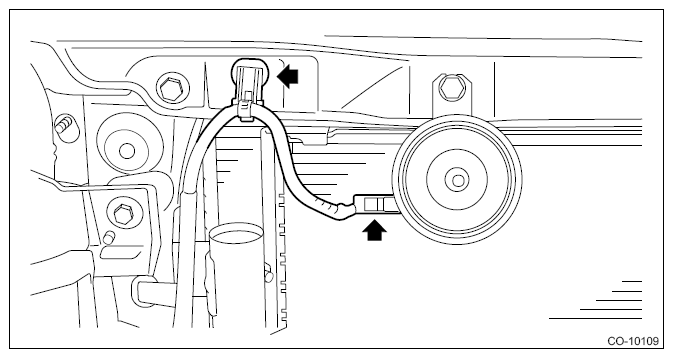

  14. Disconnect the connector from the horn, and remove the clip.
    G11253599Courtesy of SUBARU OF AMERICA, INC.

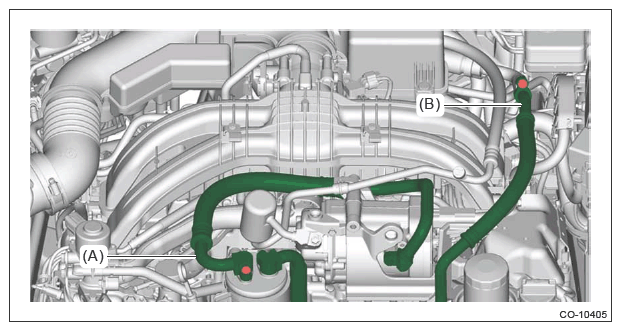

  15. Disconnect the hose - pressure suction (A) from the A/C accumulator assembly. Ref. to AIR CONDITIONER (HEV)>HOSE AND PIPE>REMOVAL>LOW-PRESSURE HOSE .
  16. Disconnect the hose - pressure suction COMPL (B) from the pipe - return assembly. Ref. to AIR CONDITIONER (HEV)>HOSE AND PIPE>REMOVAL>RETURN HOSE .
    G13231251Courtesy of SUBARU OF AMERICA, INC.

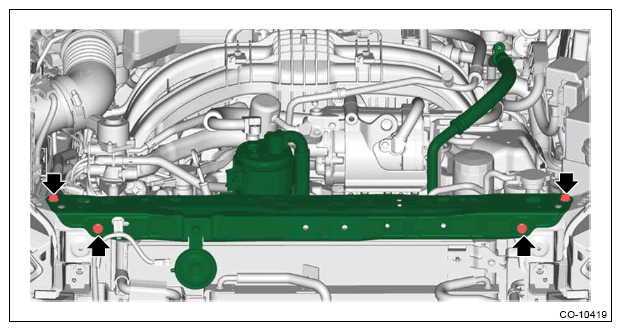

  17. Remove the upper side bolts securing the radiator upper frame, and remove the radiator upper frame together with the A/C accumulator assembly.
    CAUTION: Do not tilt the removed A/C accumulator assembly.
    G13231276Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the radiator upper cushion.

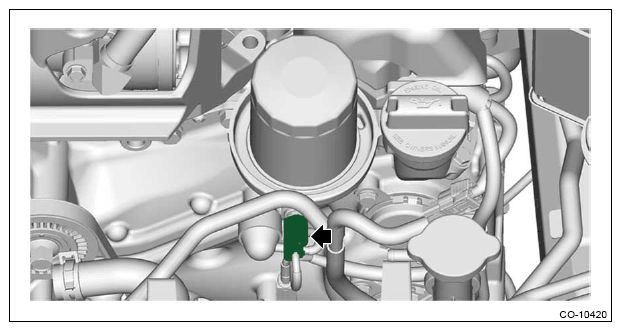

  19. Disconnect the connectors from the engine oil temperature sensor.
    NOTE: This procedure is performed to ensure the clearance at the time of removing/installing the radiator fan & fan motor assembly.
    G13231277Courtesy of SUBARU OF AMERICA, INC.

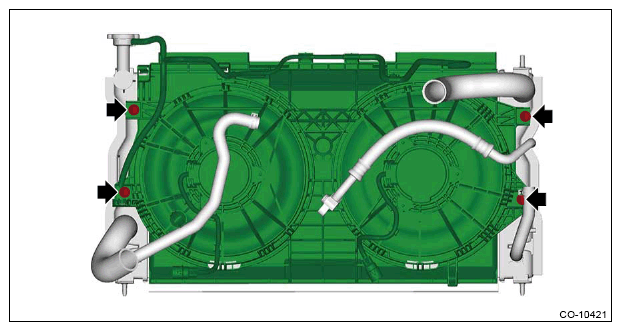

  20. Remove the bolt securing the radiator fan & fan motor assembly, and remove the radiator fan & fan motor assembly.
