Cooling Fan Motor (FA20): Removal

  1. Removal of air cleaner case SUB-ASSY (Refer to REMOVAL , Step 2)
  2. Removal of the front bumper cover (Refer to REMOVAL )
  3. Removal of air cleaner duct (Refer to REMOVAL , Step 8)
  4. Removal of radiator cover plate (Refer to REMOVAL , Step 9)
  5. Removal of radiator reservoir tank ASSY (Refer to REMOVAL , Step 7)
  6. Removal of water filler SUB-ASSY
    1. Remove the four bolts and disconnect the water filler SUB-ASSY.
      G12587136Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnection of hood lock ASSY (Refer to REMOVAL )
  8. Removal of radiator support SUB-ASSY (Refer to REMOVAL , Step 12)
  9. Fan shroud removal
    1. Remove the two clamps.

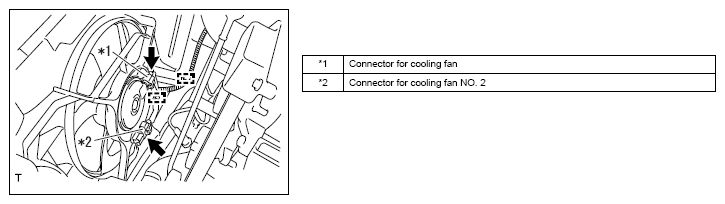

    2. Disconnect the connector for cooling fan and connector for cooling fan NO. 2.
      G12587137Courtesy of SUBARU OF AMERICA, INC.
    3. Put a mark on the sponge at the upper side of fan shroud and cut the sponge using scissors etc.
      G12587138Courtesy of SUBARU OF AMERICA, INC.

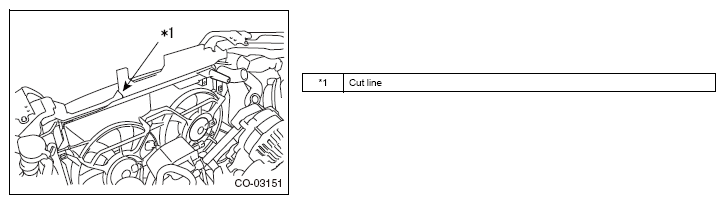

      NOTE: Cut on the line from the corner of radiator gasket to the edge of fan shroud.
      G12587139Courtesy of SUBARU OF AMERICA, INC.

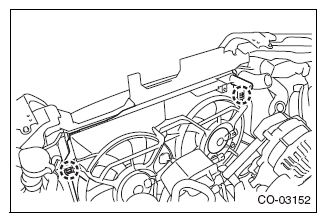

    4. Release the two claws and disconnect the fan shroud from the radiator ASSY.

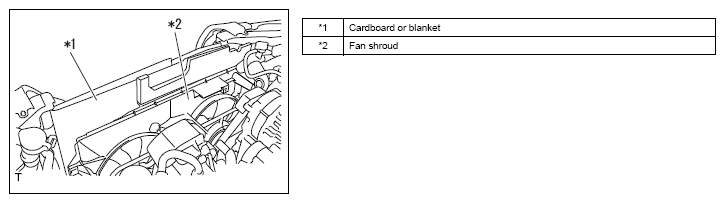

      NOTE: Insert a cardboard, blanket, etc. between the radiator ASSY and fan shroud to protect the radiator ASSY.
      G08556635Courtesy of SUBARU OF AMERICA, INC.
      G12587141Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the fan shroud.
      CAUTION:
      • Be careful not to damage the radiator outlet hose, discharge hose and A/C tube & accessory ASSY.
      • Be careful not to damage the radiator inlet hose, radiator hose NO. 1 and water filler SUB-ASSY.
      G12587142Courtesy of SUBARU OF AMERICA, INC.
  10. Fan removal
    1. Remove the nut and remove the fan.
      G12587143Courtesy of SUBARU OF AMERICA, INC.
  11. Fan NO. 2 removal
    1. Remove the nut and remove the fan NO. 2.
      G12587144Courtesy of SUBARU OF AMERICA, INC.
  12. Cooling fan motor removal
    1. Release the clamp of connector on the cooling fan side and disconnect the wiring harness from the cooling fan motor NO. 2.
      G12587145Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the three screws and remove the cooling fan motor.
      G12587146Courtesy of SUBARU OF AMERICA, INC.
  13. Cooling fan motor NO. 2 removal
    1. Remove the three screws and remove the cooling fan motor NO. 2.
      G12587147Courtesy of SUBARU OF AMERICA, INC.
