Front Seat Inner Belt ASSY: Removal

  1. Precautions for handling the device
    NOTE: The following procedure is for LH side. Unless otherwise specified, perform the same procedures for the RH side.
  2. Removal of the front seat ASSY LH (Refer to REMOVAL )
  3. Removal of the front seat cushion shield INN LH (driver's side) (Refer to DISASSEMBLY )
  4. Removal of the front seat inner belt ASSY LH (driver's side)
    1. Remove the rubber band of the separate type front seat backrest cover LH.
      G12591517Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claw and 3 clamps, and disconnect the wiring harness of the front seat inner belt ASSY LH.
      G12591518Courtesy of SUBARU OF AMERICA, INC.

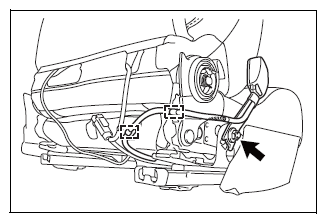

    3. Release the 2 clamps and disconnect the wiring harness of the front seat inner belt ASSY RH.
    4. Remove the nut and the washer, and remove the front seat inner belt ASSY RH.
      G12591519Courtesy of SUBARU OF AMERICA, INC.
    G08557832Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of the front seat inner belt ASSY RH (passenger's side)

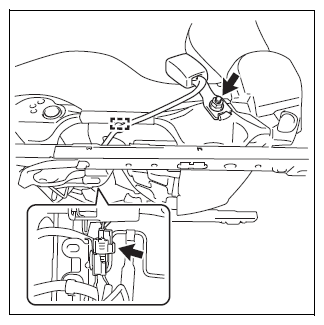

    1. Release the clamp.
    2. Remove the nut and the washer, and remove the front seat inner belt ASSY RH.
      G12591521Courtesy of SUBARU OF AMERICA, INC.
