Front Seat ASSY: Removal

NOTE: The following procedure is for LH side. Perform the same procedures for the RH side.
  1. Precautions
    WARNING:
    • Before starting the work, read the precautions for the SRS airbag system to make sure to properly perform the work. (Refer to SRS AIRBAG SYSTEM )
    • If the side airbag module LH has been activated, replace the following parts with new ones: side airbag module ASSY LH, separate type front seat backrest frame ASSY LH, separate type front seat backrest cover LH, and the separate type front seat backrest pad LH.
    CAUTION: After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Disconnection of the battery ground terminal
    WARNING:
    • Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work.
    • The air bag and pretensioner system are fitted with a backup power supply. If you start the work within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.
    CAUTION: To avoid damage to the molding, be sure to fully open the door glasses on both driver's and passenger's sides.
  3. Removal of the front seat headrest ASSY
  4. Removal of the front seat ASSY LH
    1. Slide the front seat ASSY LH to the most front position.
    2. Release the hook and turn over the front seat cushion cover LH.
      G12591418Courtesy of SUBARU OF AMERICA, INC.
    3. Disconnect the connectors and the wiring harness clamp.
    4. Remove 2 bolts on the rear side of the front seat ASSY LH.

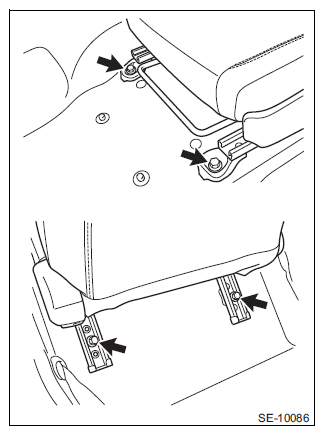

      G11262059Courtesy of SUBARU OF AMERICA, INC.
    5. Slide the front seat ASSY LH to the most rear position.
    6. Remove 2 bolts on the front side of the front seat ASSY LH.
    7. Remove the front seat ASSY LH.
      CAUTION:
      • The front seat ASSY LH must be carried out of the vehicle with the front seat headrest ASSY removed, by more than one personnel.
      • Be careful not to damage the front seat ASSY LH, the body exterior and interior.
