Instrument Panel UPR: Installation

  1. Installation of instrument panel SUB-ASSY
    1. With the 2 bolts and 7 screws, install the instrument panel SUB-ASSY.

      Standard value: T=7 N.m {71 kgf.cm} {5.2 ft.lbf}

  2. Connection of passenger airbag module
    1. With the 2 bolts, connect the passenger airbag module.

      Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

    2. Connect the passenger airbag connector and clamp.
      G08555484Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of automatic light control sensor (with light control system) (Refer to INSTALLATION )
  4. Installation of instrument cluster finish panel SUB-ASSY CTR (Refer to INSTALLATION )
  5. Installation of the instrument panel ornament (Refer to INSTALLATION )
  6. Installation of combination meter ASSY (Refer to INSTALLATION )
  7. Installation of front pillar garnish RH
    1. Remove the protective cover from the curtain airbag module.
    2. Check that the front pillar garnish clip is not damaged.
      CAUTION: If the front pillar garnish clip is damaged, be sure to replace it with a new clip.

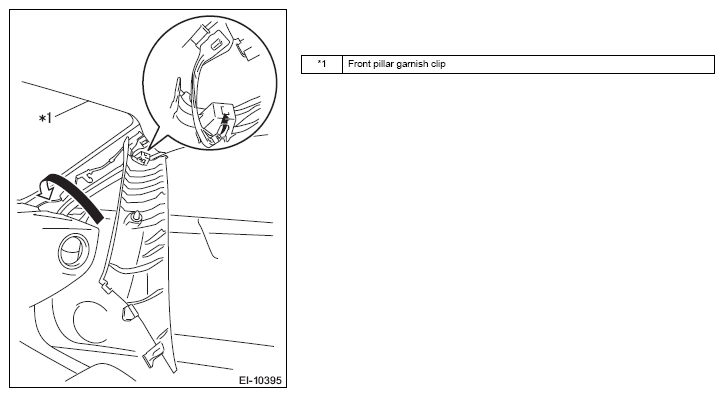

    3. As shown in the figure, hook the end of the front pillar garnish clip onto the front pillar garnish RH.
      G12594783Courtesy of SUBARU OF AMERICA, INC.
    4. Rotate the front pillar garnish RH in the direction of the arrow in the figure.
    5. Insert the 2 guides in the direction of arrow <1> in the figure.
      G12594784Courtesy of SUBARU OF AMERICA, INC.
    6. Engage the clip and front pillar garnish clip in the direction of arrow <2> in the figure, and install the front pillar garnish RH.
  8. Installation of front pillar garnish LH
    NOTE: Install the part in the same manner as RH side.
  9. Installation of speaker ASSY FR NO. 3 (for 8 speakers) (Refer to INSTALLATION )
  10. Installation of instrument panel speaker panel SUB-ASSY NO. 1
    1. Connect the speaker ASSY FR NO. 2 connector.
    2. In the order shown in the figure, engage the 6 claws and install instrument panel speaker panel SUB-ASSY NO. 1.
      CAUTION: If the claws are not correctly inserted, the claws may be damaged.
      G12594785Courtesy of SUBARU OF AMERICA, INC.
  11. Installation of speaker ASSY FR NO. 3 (for 8 speakers)
    NOTE: Install the part in the same manner as RH side.
  12. Installation of instrument panel speaker panel SUB-ASSY NO. 2
    NOTE: Install the part in the same manner as RH side.
  13. Installation of instrument panel SUB-ASSY LWR (Refer to INSTALLATION )
  14. Connection of the battery ground terminal

    Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}

  15. Settings when removing/installing battery terminals (Refer to WORKING PRECAUTIONS AND NOTES )
  16. Inspection of airbag warning light (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
