FRESH/RECIRC Door Actuator: Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of console box ASSY (Refer to REMOVAL )
  3. Removal of the instrument panel ornament (Refer to REMOVAL )
  4. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to REMOVAL )
  5. Removal of instrument cluster finish panel garnish NO. 1 (Refer to REMOVAL )
  6. Removal of instrument cluster finish panel garnish NO. 2 (Refer to REMOVAL )
  7. Removal of air conditioner control ASSY (Refer to REMOVAL )
  8. Removal of the instrument side panel RH (Refer to REMOVAL )
  9. Removal of glove compartment door ASSY (Refer to REMOVAL )
  10. Removal of instrument panel SUB-ASSY LWR (Refer to REMOVAL )

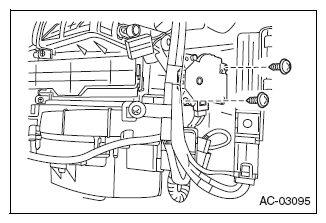

  11. Removal of air conditioner radiator damper servo SUB-ASSY NO. 1
    1. Disconnect the connector.
    2. Remove the 2 screws and remove air conditioner radiator damper servo SUB-ASSY NO. 1.
      G08553580Courtesy of SUBARU OF AMERICA, INC.
