Airmix Door Actuator: Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of the instrument side panel LH (Refer to REMOVAL )
  3. Removal of the instrument panel under cover SUB-ASSY No. 1 (Refer to LIGHT CONTROL RHEOSTAT )
  4. Removal of air conditioner radiator damper servo SUB-ASSY NO. 5 (driver's seat side)
    1. Disconnect the connector.
    2. Remove the 2 screws and remove air conditioner radiator damper servo SUB-ASSY NO. 5.
      CAUTION: When reusing air conditioner radiator damper servo SUB-ASSY NO. 5, set the controller position to MAXCOOL on the vehicle before removal and save it for 30 seconds after setting.

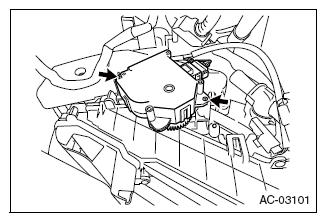

    G08553587Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of console box ASSY (Refer to REMOVAL )
  6. Removal of the instrument panel ornament (Refer to REMOVAL )
  7. Removal of instrument cluster finish panel SUB-ASSY CTR (Refer to REMOVAL )
  8. Removal of instrument cluster finish panel garnish NO. 1 (Refer to REMOVAL )
  9. Removal of instrument cluster finish panel garnish NO. 2 (Refer to REMOVAL )
  10. Removal of air conditioner control ASSY (Refer to REMOVAL )
  11. Removal of the instrument side panel RH (Refer to REMOVAL )
  12. Removal of glove compartment door ASSY (Refer to REMOVAL )
  13. Removal of instrument panel SUB-ASSY LWR (Refer to REMOVAL )
  14. Removal of air conditioner radiator damper servo SUB-ASSY NO. 4 (passenger's seat side)
    1. Disconnect the connector.
    2. Remove the 2 screws and remove air conditioner radiator damper servo SUB-ASSY NO. 4.
      CAUTION: When reusing air conditioner radiator damper servo SUB-ASSY NO. 4, set the controller position to the servo motor opening angle 32.42 % on the vehicle before removal and hold it for 30 seconds after setting.

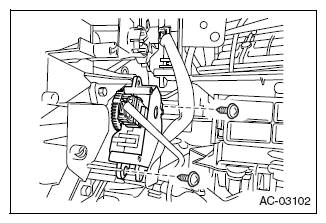

      G08553588Courtesy of SUBARU OF AMERICA, INC.
