Front Mounting Bracket

WARNING: This page is about a different variant/trim than selected.
  1. Remove the radiator fan and fan motor assembly. Ref. to REMOVAL , Radiator Fan and Fan Motor Assembly.
  2. Remove the front cushion rubbers. Ref. to FRONT CUSHION RUBBER AND ENGINE MOUNTING BRACKET , REMOVAL, Engine Mounting.
  3. Remove the front mounting bracket.

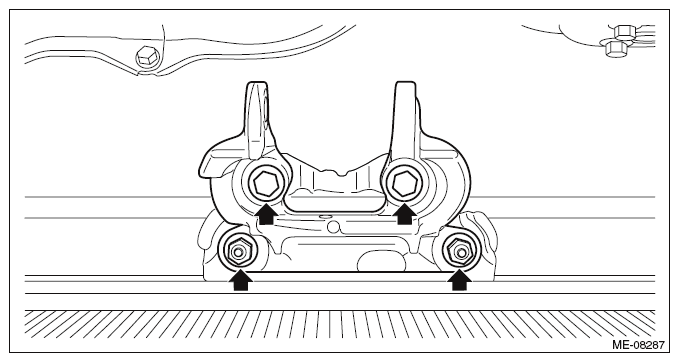

    Fig 1: Identifying Front Mounting Bracket Bolts
    G10262562Courtesy of SUBARU OF AMERICA, INC.
