Radiator Fan and Fan Motor Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Lower the vehicle.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Disconnect the radiator inlet hose from the radiator.

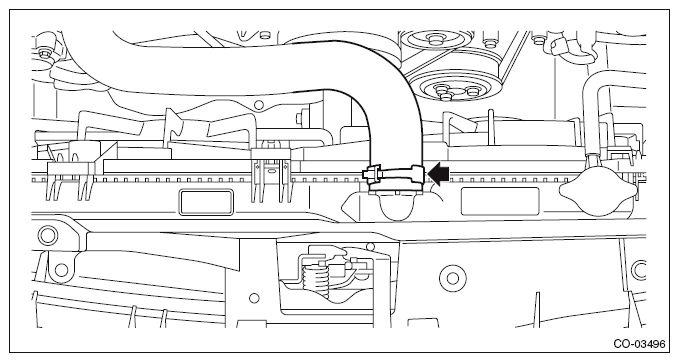

Fig 1: Identifying Radiator Inlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the reservoir tank. Ref. to REMOVAL , Reservoir Tank.
Disconnect the connector (A) from the radiator main fan motor and the connector (B) from the radiator sub fan motor.

Fig 2: Identifying Radiator Main Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Radiator Sub Fan Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Release the claw (A) on the radiator upper side, and incline the top of the radiator fan & fan motor assembly to the engine side.

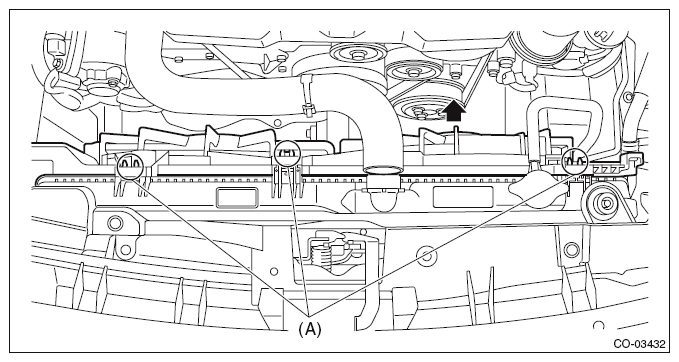

Fig 4: Identifying Radiator Upper Side Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator fan & fan motor assembly from vehicle body.
