Front Cushion Rubber And Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Fully open the front hood. Ref. to FRONT HOOD DAMPER STAY , NOTE, Repair Contents.
Disconnect the ground terminal from battery sensor. Ref. to BATTERY , NOTE, Repair Contents.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

Fig 1: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

Fig 2: Removing Air Intake Boot From Rear Air Cleaner Case And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt covers.

Fig 3: Identifying V-Belt Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Using the ST1, install the ST2 to the engine unit.
ST1 18363AA050 BOLT

ST2 18360AA040 HANGER

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Fig 4: Identifying ST1 And ST2
Courtesy of SUBARU OF AMERICA, INC.
Support the engine with a lifting device and wire ropes.

Fig 5: Supporting Engine With Lifting Device And Wire Ropes
Courtesy of SUBARU OF AMERICA, INC.
Remove the front cushion rubber from the front mounting bracket and engine mounting bracket.

Fig 6: Identifying Front Cushion Rubber Engine Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the engine mounting bracket from the engine assembly.

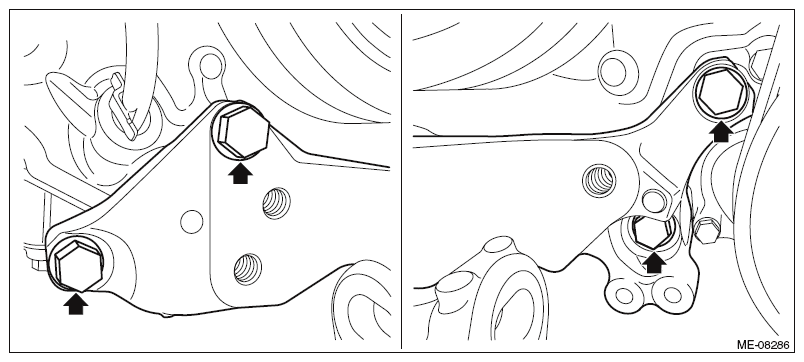

Fig 7: Identifying Engine Mounting Bracket Bolts

Courtesy of SUBARU OF AMERICA, INC.
