Evaporator Sensor: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to BATTERY
    NOTE: Repair Contents.
  2. Using the refrigerant recovery system, discharge refrigerant. Ref. to PROCEDURE , Refrigerant Recovery Procedure.
  3. Remove the evaporator assembly - cooling. Ref. to REMOVAL , Evaporator.
  4. Remove the evaporator sensor.

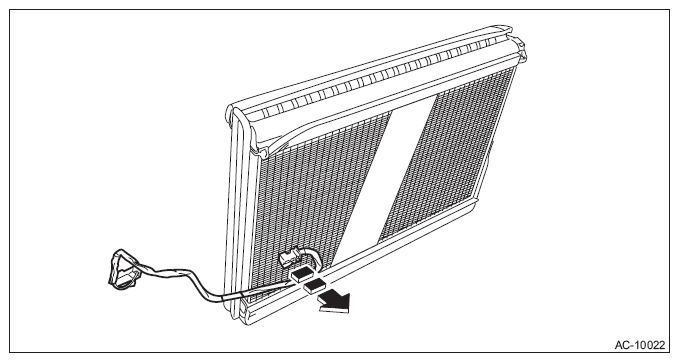

Fig 1: Removing Evaporator Sensor
G10311406Courtesy of SUBARU OF AMERICA, INC.
