Refrigerant Recovery Procedure: Procedure

CAUTION:

During operation, be sure to wear protective goggles and protective gloves.
Connect the refrigerant recovery system with the manifold gauge set to discharge the refrigerant from the A/C system and recycle the gas.
When recycling the discharged refrigerant, keep service cans on hand. Because the recovery rate with the recovery system is approx. 90%, service cans are necessary to charge the refrigerant.
Follow the detailed operation procedure described in the operation manual attached to the refrigerant recovery system.

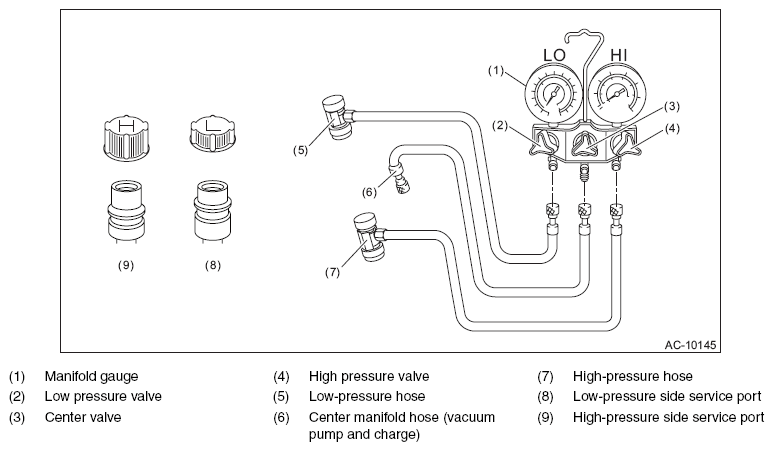

Fig 1: Refrigerant Recovery Procedure System Diagram

Courtesy of SUBARU OF AMERICA, INC.

Perform compressor oil return operation. Ref. to PROCEDURE , Compressor Oil.
Turn the ignition switch to OFF.
Remove the collector cover. (H6 model)
1. Carefully pull up the rear of collector cover at two positions (A).
2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
Fig 2: Removing Collector Cover (H6 Model)
Courtesy of SUBARU OF AMERICA, INC.
Attach the manifold gauge set.
Preparation tool:

Manifold gauge set
1. Check that all valves are fully closed.
2. Install the low/high pressure hoses to the service ports on the low/high pressure sides of the vehicle respectively.
  CAUTION: Confirm that the connections are secure.
3. Connect the center hose to the refrigerant recovery system.
Preparation tool:

Refrigerant recovery system
Follow the operation manual attached to the refrigerant recovery system to collect the refrigerant.
