CVTF Cooler (Air Cooling): Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Remove the front bumper. Ref. to REMOVAL , Front Bumper.
Remove the headlight assembly LH. Ref. to REMOVAL , Headlight Assembly.
Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.

Fig 1: Identifying CVTF Cooler (Air Cool) Inlet And Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF cooler (air cool).

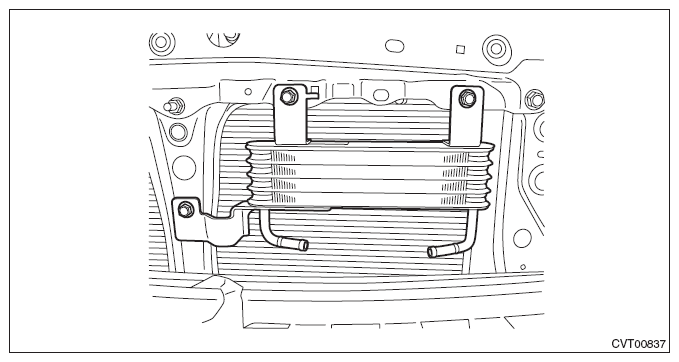

Fig 2: Identifying CVTF Cooler (Air Cool)

Courtesy of SUBARU OF AMERICA, INC.
