Headlight Assembly: Removal

CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the bumper face - front. <Ref. to REMOVAL , Front Bumper.>
  3. Remove the cover - front fender.
    1. Remove the clip.
    2. Release the claws, and then remove the cover - front fender UPR.

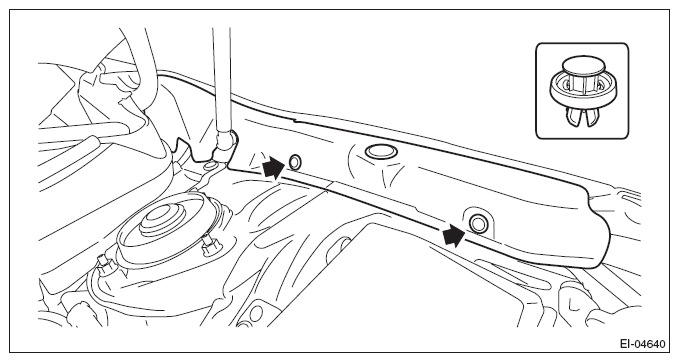

    Fig 1: Locating Cover - Front Fender UPR Claws
    G10277208Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts, and then remove the bracket - front bumper corner.
    Fig 2: Locating Bracket - Front Bumper Corner Bolts
    G10277209Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the light assembly - head.
CAUTION: Be careful not to damage the light assembly - head and the fender COMPL - front.
  1. Disconnect the connector.
  2. Remove the bolts and clips, and remove the light assembly - head.

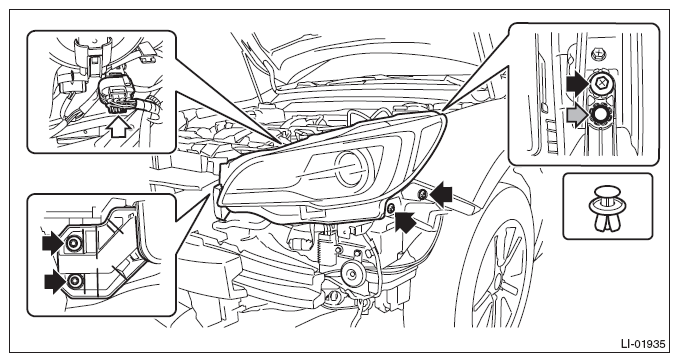

Fig 3: Locating Light Assembly - Head Bolts And Clips
G10277210Courtesy of SUBARU OF AMERICA, INC.
