Front Bumper: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the bumper face - front.
    1. Remove the clips at the upper side of the bumper face - front.
    2. Remove the clips from the fender.
    3. Remove the clips at the lower side of the bumper face - front.

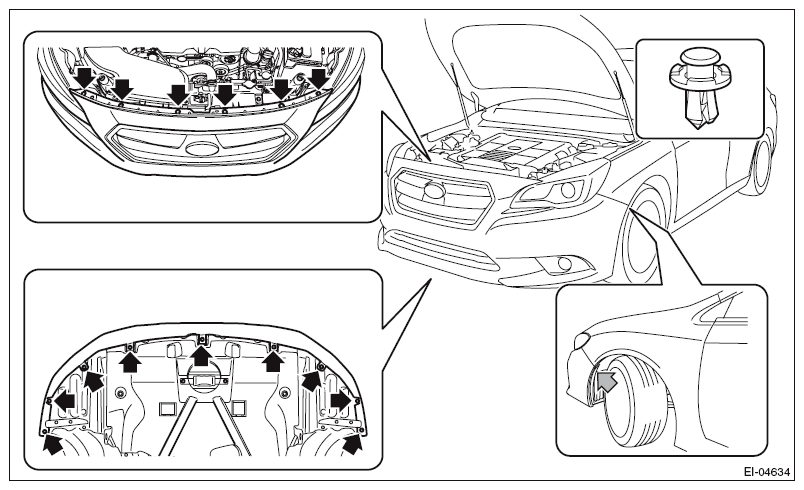

      Fig 1: Removing Clips At Lower Side Of Bumper Face - Front
      G10273069Courtesy of SUBARU OF AMERICA, INC.
    4. Disconnect the fog light assembly connector.
    5. While pushing up the lower side (a) of the bumper face - front, release the engagement in the order from (b) to (i).
    CAUTION: Do not pull forcibly. It may damage the flange section on the bumper face - front side when it comes off from the claws of the bracket - front bumper.

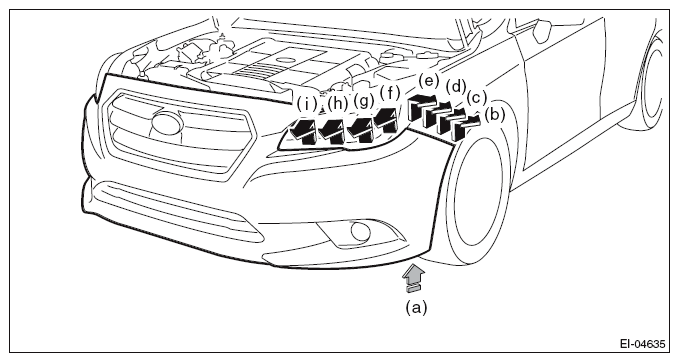

    Fig 2: Front Bumper Face Engagement Releasing Order
    G10273070Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Detach the opposite side in the same manner.
  3. Remove the energy absorber foam - front.

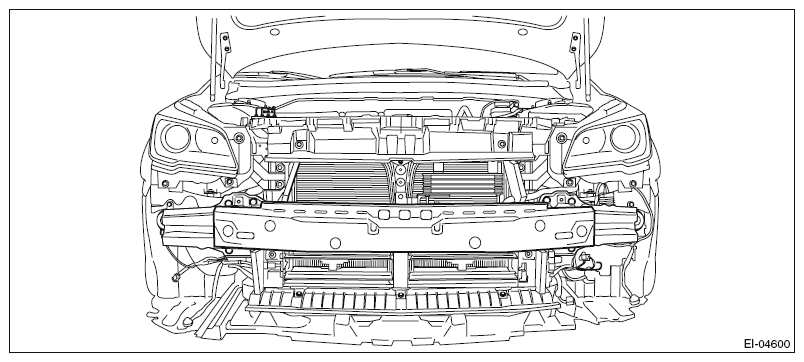

    Fig 3: Locating Energy Absorber Foam - Front
    G10273071Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts and clips, disconnect the connector and remove the active grille shutter. (H4 model)

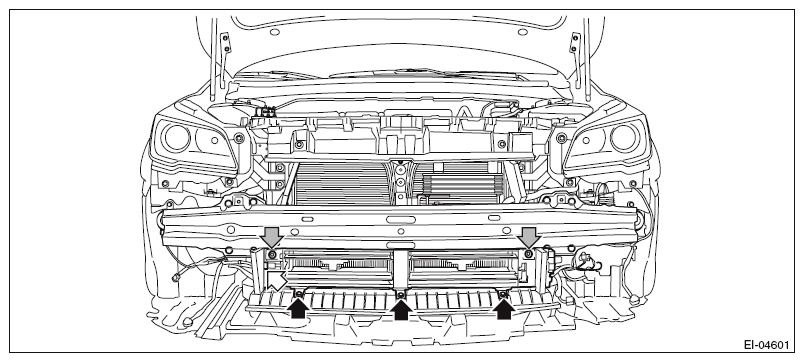

    Fig 4: Locating Active Grille Shutter Bolts And Clips
    G10273072Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts, and remove the bumper beam COMPL - front.

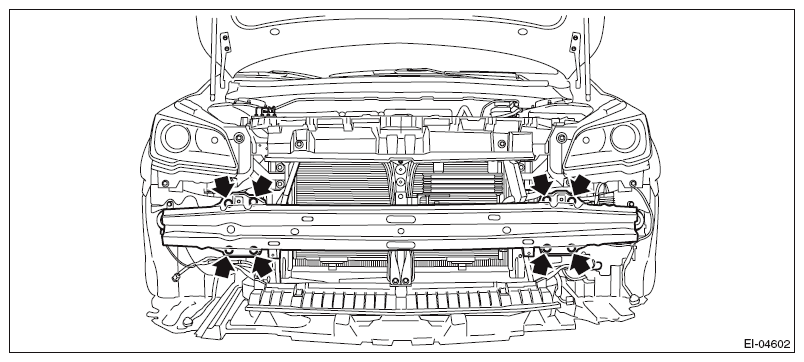

    Fig 5: Removing Bolts Of Bumper Beam COMPL - Front
    G10273073Courtesy of SUBARU OF AMERICA, INC.
    NOTE: After the bolts are removed, raise the bumper beam COMPL - front a little to remove it from vehicle body.
  6. Remove the under cover - front. <Ref. to REMOVAL , Front Under Cover.>
  7. Remove the bolts, and pull the bracket - front center LWR to remove.

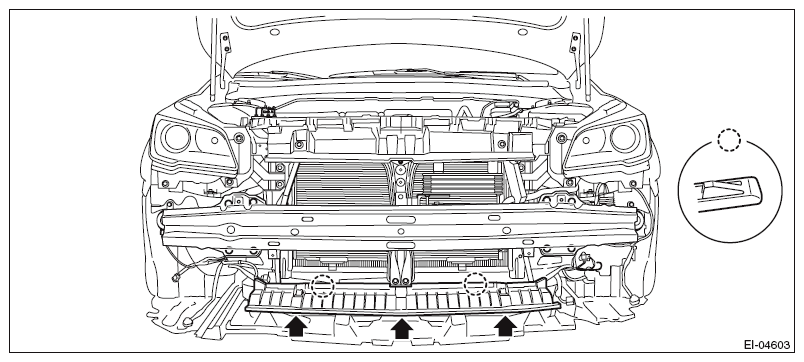

    Fig 6: Pulling Bracket - Front Center LWR
    G10273074Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bolts and clips, and remove the bracket - front bumper corner.
    Fig 7: Locating Bolts And Clips Of Bracket - Front Bumper Corner
    G10277209Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the bracket - front bumper side.
    1. Remove the bolts and screws.
    2. Remove the claws from behind the fender COMPL - front, and remove the bracket - front bumper side.

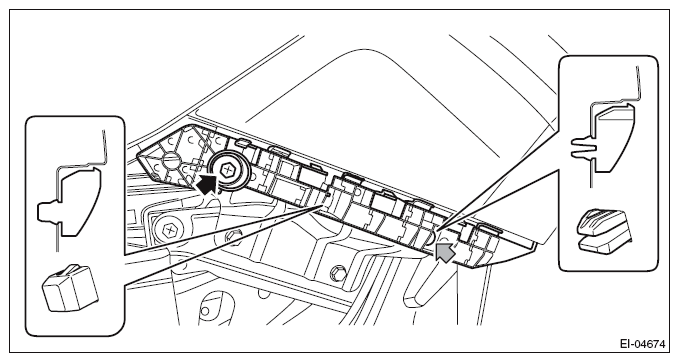

    Fig 8: Locating Bolts Claws Of Bracket - Front Bumper Side
    G10273076Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the fog light assembly - front. <Ref. to REMOVAL , Front Fog Light Assembly.>
