Inhibitor Switch: Adjustment
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- While pressing the shift lock release button, shift the select lever to the "N" range.
- Lift up the vehicle.
- Loosen the two bolts holding the inhibitor switch.

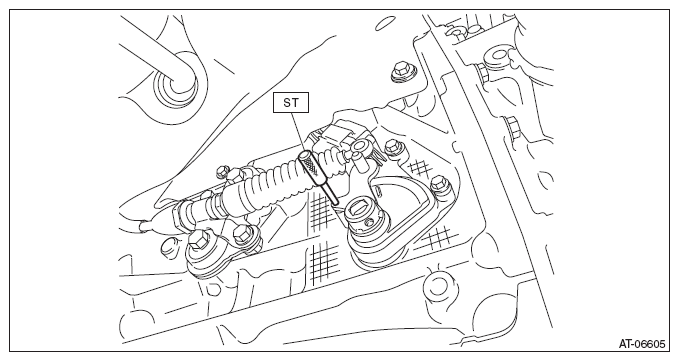

- Insert the ST vertically into the holes of the shifter arm and switch body.
ST 499267300 STOPPER PIN
- Tighten the two bolts holding the inhibitor switch.
Tightening torque:
5 N.m (0.5 kgf-m, 3.7 ft-lb)
- Repeat the inspection of the inhibitor switch. If the inhibitor switch is determined to be "faulty", replace it.
