Chain Cover: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil filler cap.

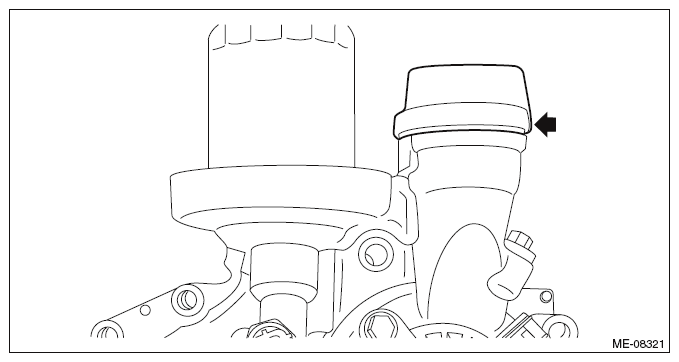

    Fig 1: Locating Oil Filler Cap
    G10262603Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the engine oil filter and the oil pump union. Ref. to LUBRICATION(H4DO)>Engine Oil Filter>REMOVAL .
  3. Remove the oil pressure switch. Ref. to LUBRICATION(H4DO)>Oil Pressure Switch>REMOVAL .
  4. Remove the engine oil temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Engine Oil Temperature Sensor>REMOVAL .
  5. Remove the oil control solenoid. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Oil Control Solenoid>REMOVAL .
  6. Remove the camshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Camshaft Position Sensor>REMOVAL .
  7. Remove the actuator cover from chain cover.
    Fig 2: Locating Actuator Cover Bolts
    G11263798Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the sensor cover from chain cover.
Fig 3: Locating Sensor Cover Bolts
G11263799Courtesy of SUBARU OF AMERICA, INC.
