Oil Pressure Switch: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emitting smoke or causing a fire.

Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the rubber cap.

Fig 1: Locating Oil Pressure Switch Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the terminal from oil pressure switch.

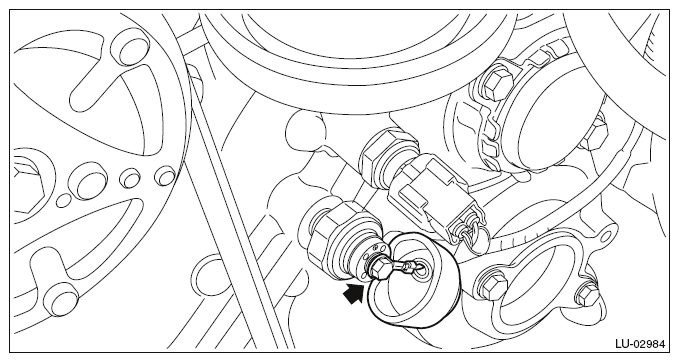

Fig 2: Locating Oil Pressure Switch Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pressure switch.

CAUTION: Catch the engine oil using cloth to prevent it from splashing.

Fig 3: Locating Oil Pressure Switch

Courtesy of SUBARU OF AMERICA, INC.
