Camshaft Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
Remove the air intake duct (rear). (RH side only) Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.
- RH side

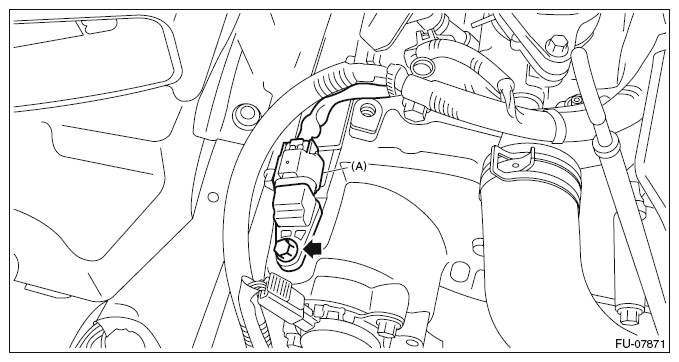

  Fig 1: Locating Connector From Camshaft Position Sensor Bolt (RH Side)
  Courtesy of SUBARU OF AMERICA, INC.
- LH side

Fig 2: Locating Connector From Camshaft Position Sensor Bolt (LH Side)

Courtesy of SUBARU OF AMERICA, INC.
