Turbo Model

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip (A), lift the front of the collector cover in the direction of arrow, and then remove the collector cover.
    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    Fig 1: Removing Generator Collector Cover (Turbo Model)
    G10403792Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the brake vacuum pump. Ref. to BRAKE>Brake Vacuum Pump>REMOVAL .
  4. Remove the V-belts. Ref. to MECHANICAL(H4DOTC)>V-belt>REMOVAL>V-BELT .
  5. Remove the collector cover bracket.
    Fig 2: Locating Collector Cover Bracket Bolts
    G09476731Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector (A) and terminal (B) from the generator.
    Fig 3: Identifying Generator Connector And Terminal (Turbo Model)
    G09476732Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the generator from the generator bracket.

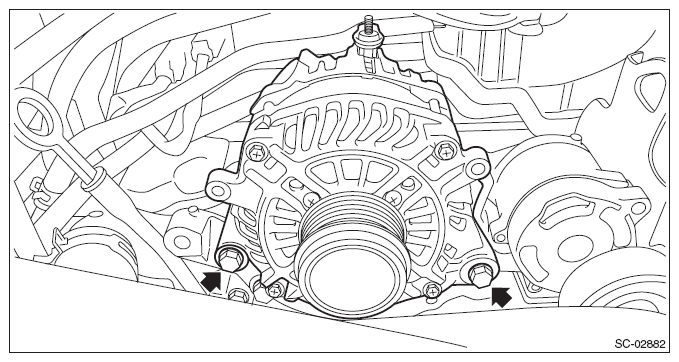

    Fig 4: Locating Generator Bracket Bolts
    G09476733Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the V-belt tensioner assembly. Ref. to MECHANICAL(H4DOTC)>V-belt>REMOVAL>V-BELT TENSIONER ASSEMBLY .
  9. Remove the generator bracket from the engine.

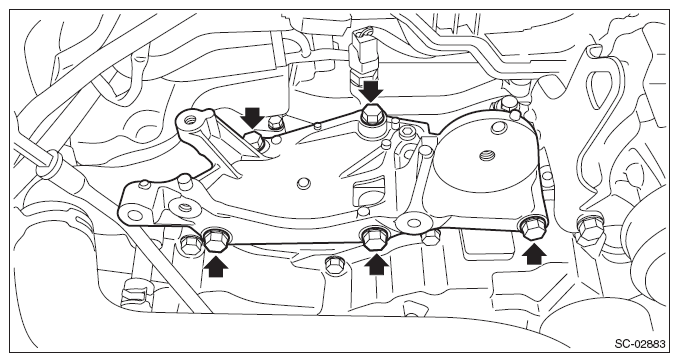

Fig 5: Locating Engine And Generator Bracket Bolts
G09476734Courtesy of SUBARU OF AMERICA, INC.
