V-Belt TENSIONER Assembly

  1. Remove the V-belts. Ref. to MECHANICAL (H4DOTC)>V-belt>REMOVAL>V-BELT .
  2. Remove the cap from V-belt tensioner assembly.

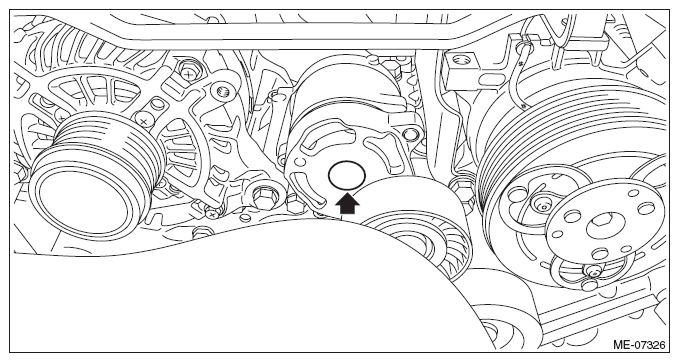

    Fig 1: Locating Cap From V-Belt Tensioner Assembly
    G09480252Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt securing the V-belt tensioner assembly to the generator bracket, and remove the V-belt tensioner assembly.
Fig 2: Locating V-Belt Tensioner Assembly Bolt
G09480253Courtesy of SUBARU OF AMERICA, INC.
