Non-Turbo Model

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belt covers.
    Fig 1: Locating Generator V-Belt Cover (Non-Turbo Model)
    G11263695Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  3. Remove the V-belts. Ref. to MECHANICAL(H4DO)>V-belt>REMOVAL>V-BELT .
  4. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).
  5. Remove the V-belt cover bracket.

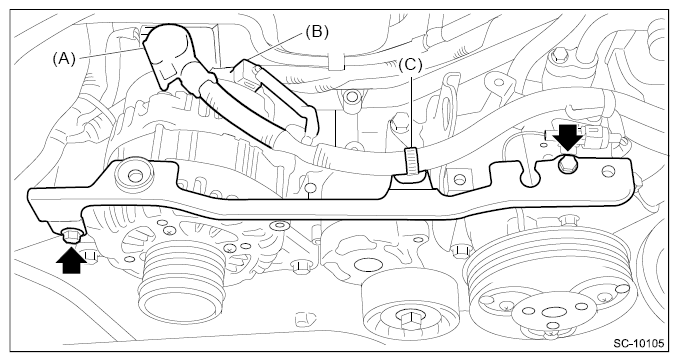

    Fig 2: Identifying Generator Connector, Terminal And Clip
    G11264760Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the generator from the generator bracket.

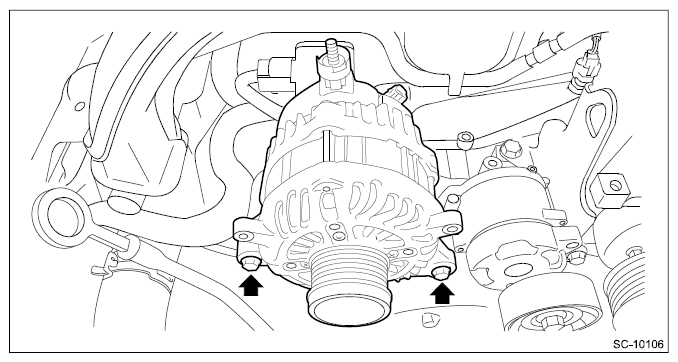

    Fig 3: Locating Generator Bracket Bolts
    G11264761Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the V-belt tensioner assembly. Ref. to MECHANICAL(H4DO)>V-belt>REMOVAL>V-BELT TENSIONER ASSEMBLY .
  8. Remove the generator bracket from the engine.

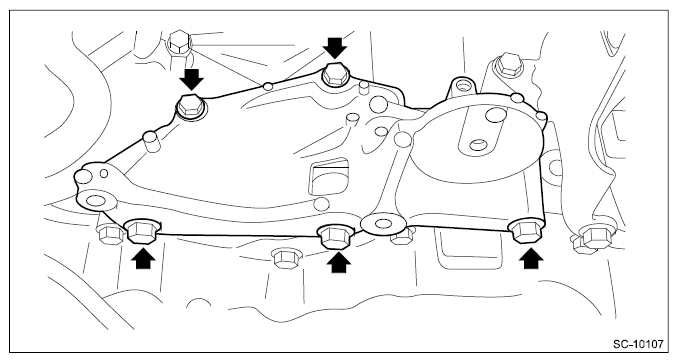

Fig 4: Locating Engine And Generator Bracket Bolts
G11264762Courtesy of SUBARU OF AMERICA, INC.
