Section 6 (Engine Mechanical (H4DO)): V-belt: Removal: V-Belt

1. When working on the vehicle
   NOTE: When working on the vehicle, perform the following steps also.
   1. Remove the V-belt covers.
   Fig 1: Locating V-Belt Cover Bolt

   Courtesy of SUBARU OF AMERICA, INC.

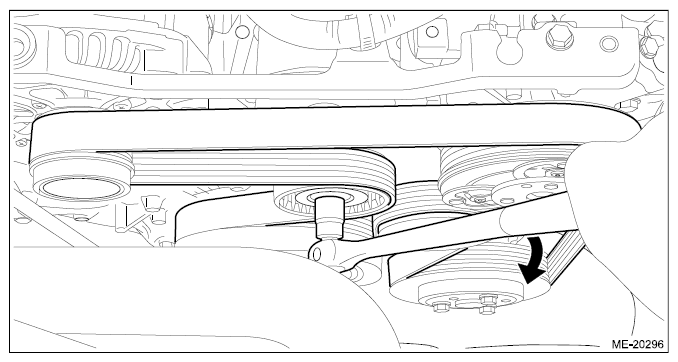

2. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to loosen and remove the V-belt.

Fig 2: Rotating Tool Clockwise

Courtesy of SUBARU OF AMERICA, INC.
