V-Belt TENSIONER Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. Ref. to MECHANICAL(H4DO)>V-belt>REMOVAL>V-BELT .
  2. Remove the cap from V-belt tensioner assembly.

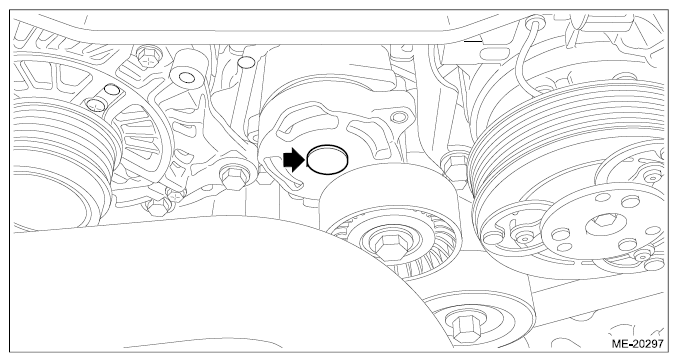

    Fig 1: Locating Cap From V-Belt Tensioner Assembly
    G11263754Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the V-belt tensioner assembly.
Fig 2: Locating V-Belt Tensioner Assembly
G11263755Courtesy of SUBARU OF AMERICA, INC.
