Turbo Model

WARNING: This page is about a different variant/trim than selected.

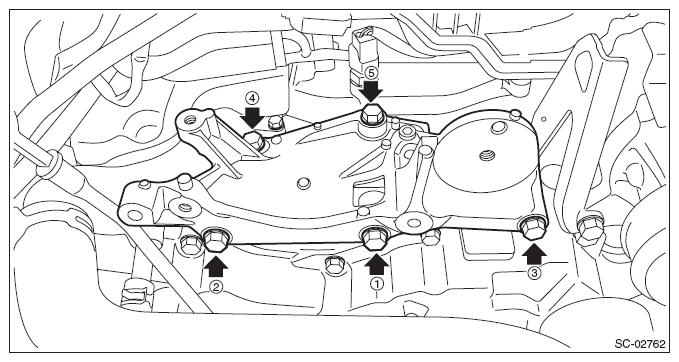

Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

Fig 1: Generator Bracket Bolts Tightening Sequence (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner assembly. Ref. to MECHANICAL(H4DOTC)>V-belt>INSTALLATION>V-BELT TENSIONER ASSEMBLY .
Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Generator Bracket Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

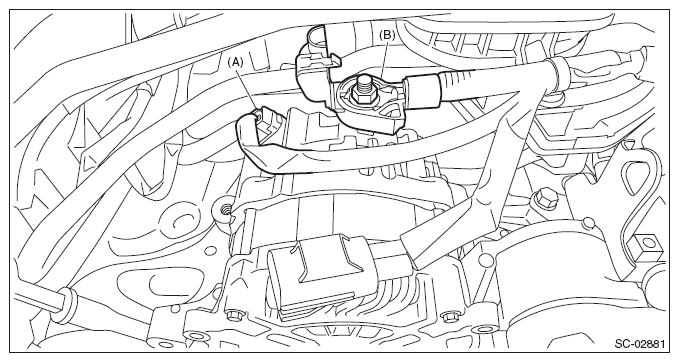

Connect the connector (A) and terminal (B) to the generator.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Fig 3: Connecting Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.

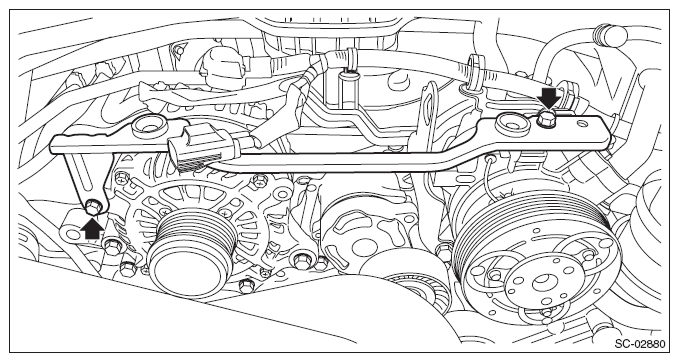

Install the collector cover bracket.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 4: Locating Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL(H4DOTC)>V-belt>INSTALLATION>V-BELT .
Install the brake vacuum pump. Ref. to BRAKE>Brake Vacuum Pump>INSTALLATION .
Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERY .
Install the collector cover.
