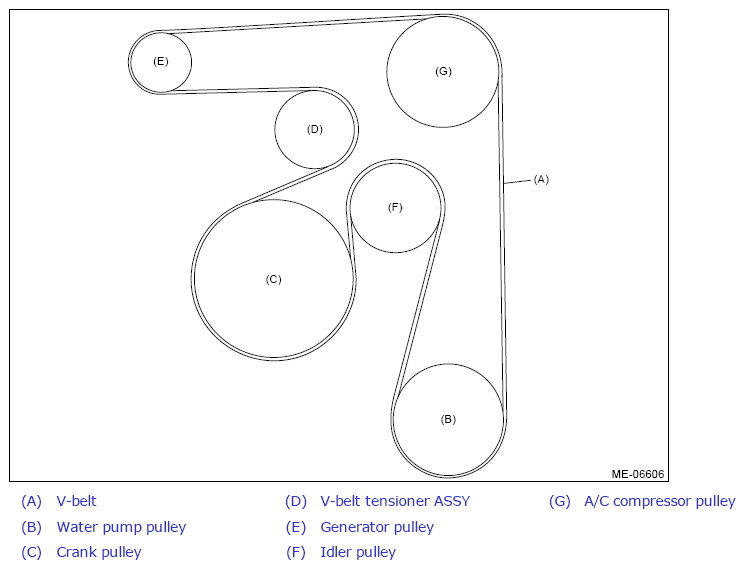

Engine Mechanical (H4DOTC): V-belt: Installation: V-Belt
Install in the reverse order of removal.
CAUTION:
- When reusing the V-belt, wipe off dust and water with cloth.
- Do not use the V-belt if there is any oil, grease or coolant on the belt.
- Be careful not to rub the V-belt end surface with bare hands; exposed core may cause injury.
- Wipe off any dust, oil and water on the groove of each pulley with cloth.
