V-Belt TENSIONER Assembly

Install in the reverse order of removal.

NOTE: When installing the V-belt tensioner assembly, insert the protrusion of V-belt tensioner assembly into the hole for preventing rotation at the generator bracket.

Fig 1: Inserting Protrusion Of V-Belt Tensioner Assembly Into Hole

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

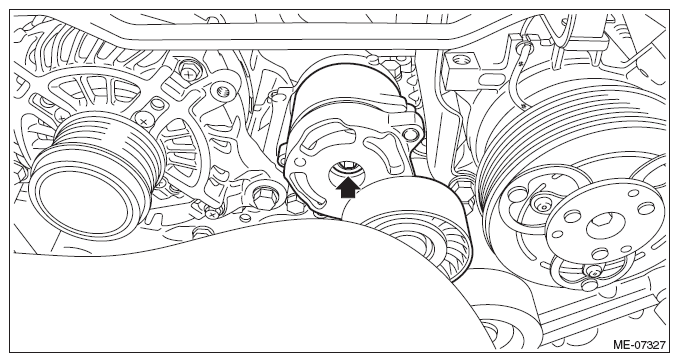

Fig 2: Locating V-Belt Tensioner Assembly Bolt

Courtesy of SUBARU OF AMERICA, INC.
