Non-Turbo Model

1. Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.

   Tightening torque:

   36 N.m (3.7 kgf-m, 26.6 ft-lb)

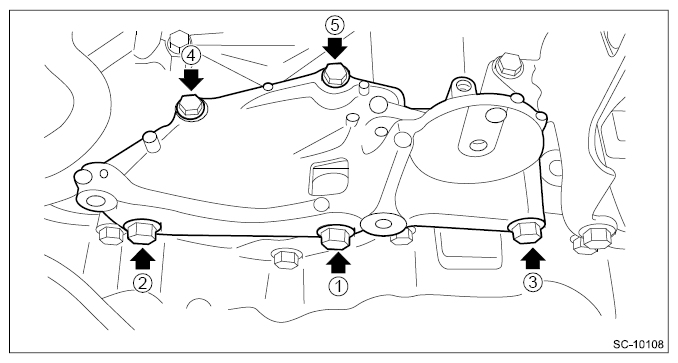

   Fig 1: Generator Bracket Bolts Tightening Sequence (Non-Turbo Model)

   Courtesy of SUBARU OF AMERICA, INC.
2. Install the V-belt tensioner assembly. Ref. to MECHANICAL(H4DO)>V-belt>INSTALLATION>V-BELT TENSIONER ASSEMBLY .
3. Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.

   Tightening torque:

   25 N.m (2.5 kgf-m, 18.4 ft-lb)

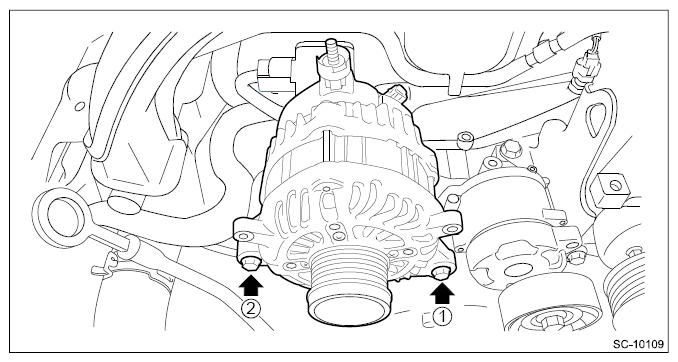

   Fig 2: Generator Bracket Bolts Tightening Sequence (Non-Turbo Model)

   Courtesy of SUBARU OF AMERICA, INC.
4. Install the V-belt cover bracket.
5. Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).

   Tightening torque:

   T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

   T2: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

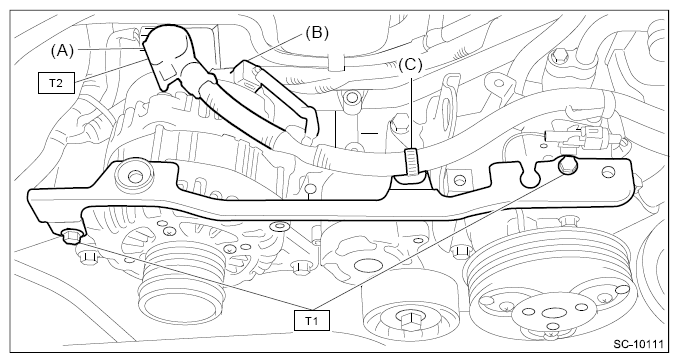

   Fig 3: Identifying Generator Connector, Terminal And Clip With Torque Specifications

   Courtesy of SUBARU OF AMERICA, INC.
6. Install the V-belts. Ref. to MECHANICAL(H4DO)>V-belt>INSTALLATION>V-BELT .
7. Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
8. Install the V-belt cover.

Tightening torque:

7N.m (0.7 kgf-m, 5.2 ft-lb)

Fig 4: Locating V-Belt Cover Bolt

Courtesy of SUBARU OF AMERICA, INC.
