Section 6 (Engine Mechanical (H4DO)): V-belt: Installation: V-Belt

1. Attach the tool to the V-belt tensioner assembly, and rotate the tool clockwise to remove the V-belt as shown in the figure.
   CAUTION:

   • When reusing the V-belt, wipe off dust and water with cloth.
   • Do not use the V-belt if there is any oil, grease or coolant on the belt.
   • Be careful not to rub the V-belt end surface with bare hands; exposed core may cause injury.
   • Wipe off any dust, oil and water on the groove of each pulley with cloth.

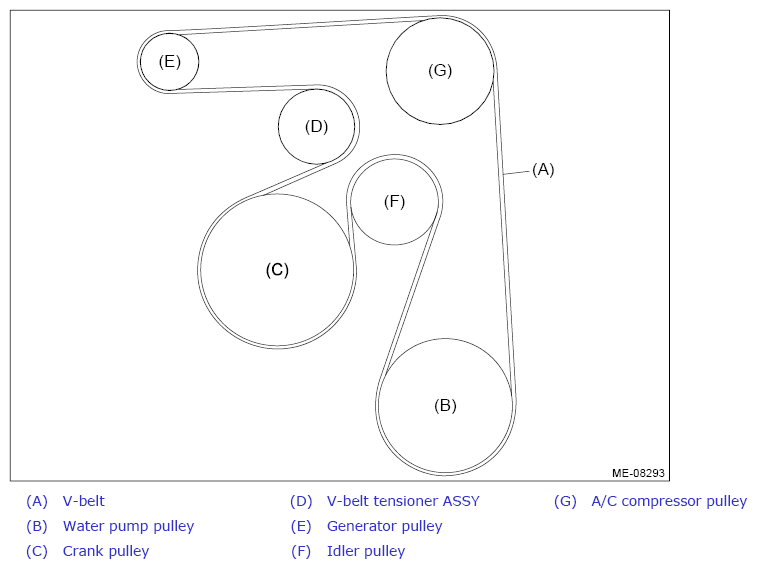

   Fig 1: Engine Drive Belt Routing Diagram

   Courtesy of SUBARU OF AMERICA, INC.
2. When working on the vehicle

1. Install the V-belt cover.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)
