Shift Link Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Switches and Harness>REMOVAL .
Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
Remove the extension case assembly.
Remove the center differential and transfer driven gear as a unit. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Driven Gear>REMOVAL .
Pull out the straight pin.

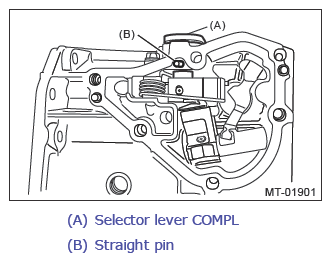

Fig 1: Identifying Selector Lever COMPL And Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Use the ST to remove the straight pin, and remove the selector lever COMPL.
ST 398791700 REMOVER

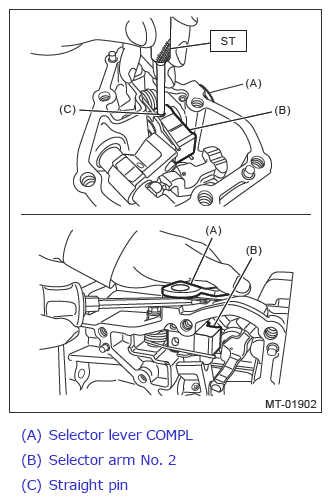

Fig 2: Identifying Selector Lever COMPL, Selector Arm No (2) And Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Pull out the selector arm No. 2.

Fig 3: Locating Shifter Arm Collar And Neutral Set Spring Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and remove the shifter arm collar and neutral set spring.

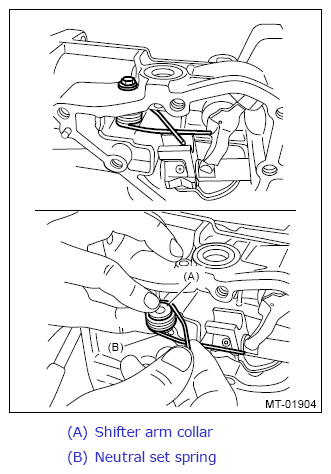

Fig 4: Identifying Shifter Arm Collar And Neutral Set Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the shifter arm No. 2, adjusting washers and thrust bearing.

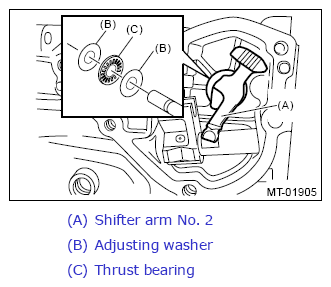

Fig 5: Identifying Shifter Arm No (2), Adjusting Washer And Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.

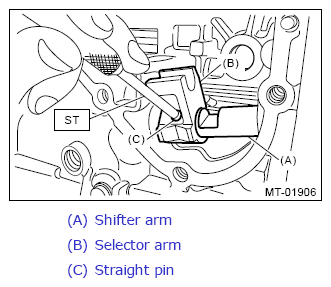

Use the ST to remove the straight pin, and remove the shifter arm and selector arm.
ST 398791700 REMOVER

Fig 6: Removing Shifter Arm And Selector Arm
Courtesy of SUBARU OF AMERICA, INC.

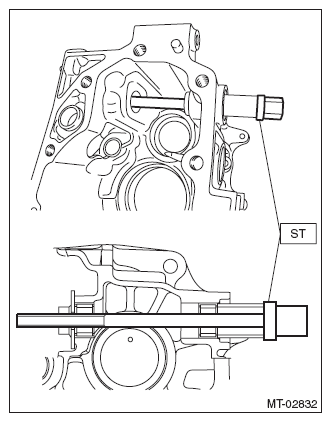

Remove the oil seal using a screwdriver wrapped with tape, etc.
NOTE: The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for removing the shifter arm No. 2.

Fig 7: Removing Oil Seal Using Screwdriver Wrapped With Tape
Courtesy of SUBARU OF AMERICA, INC.

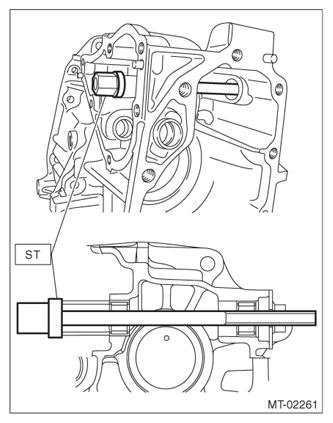

Remove the needle bearing by using a tube with the diameter of 20 mm (0.79 in) or 21 mm (0.83 in) and the ST.
ST 18763AA000 COMPRESSOR SHAFT

Fig 8: Removing Needle Bearing Using ST (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Removing Needle Bearing Using ST (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
  ST1 498267300 CYLINDER HEAD TABLE

  ST2 498267200 CYLINDER HEAD TABLE

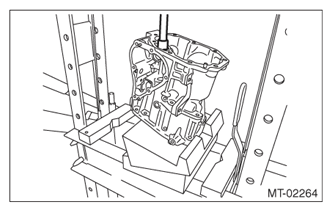

Fig 10: Setting ST2 Under ST1
Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing by using a round bar with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).

Fig 11: Removing Roller Bearing Using Round Bar
Courtesy of SUBARU OF AMERICA, INC.

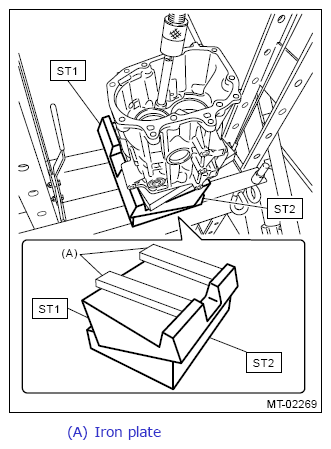

Flip over the transfer case, and set an iron plate between transfer case and ST.
NOTE:
- Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between the ST and transfer case.
- Set the iron plate so that the transfer case knock pin does not ride on the iron plate.
Remove the roller bearing by using a tube with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).

Fig 12: Removing Roller Bearing Using Tube With Diameter
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift accent plunger and the check ball spring.

Fig 13: Exploded View Of Shift Accent Plunger

Courtesy of SUBARU OF AMERICA, INC.
