Transfer Case and Extension Case Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Switches and Harness>REMOVAL .
Remove the transfer case together with the extension case assembly.
1. Remove the transmission cover.

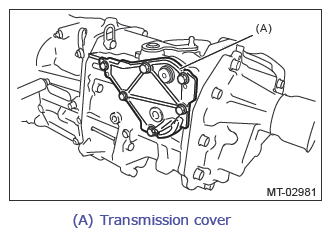

  Fig 1: Identifying Transmission Cover
  Courtesy of SUBARU OF AMERICA, INC.
2. Set and hold the selector lever COMPL to the 1st-2nd side, and remove the transfer case and extension case assembly as a unit.
Fig 2: Setting Selector Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer cover.

Fig 3: Identifying Transfer Cover
Courtesy of SUBARU OF AMERICA, INC.
Use the ST to push out the spring pin, and remove the shift lever COMPL.
ST 398791700 REMOVER

Fig 4: Identifying Shift Lever COMPL And Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the extension case assembly.

Fig 5: Identifying Extension Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer driven gear and center differential as a unit.

Fig 6: Identifying Transfer Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the taper roller bearing (extension case side) outer race and the adjusting washer.

Fig 7: Identifying Taper Roller Bearing

Courtesy of SUBARU OF AMERICA, INC.
