Transfer Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Switches and Harness>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear and center differential as a unit.
    Fig 1: Identifying Transfer Driven Gear
    G06652310Courtesy of SUBARU OF AMERICA, INC.

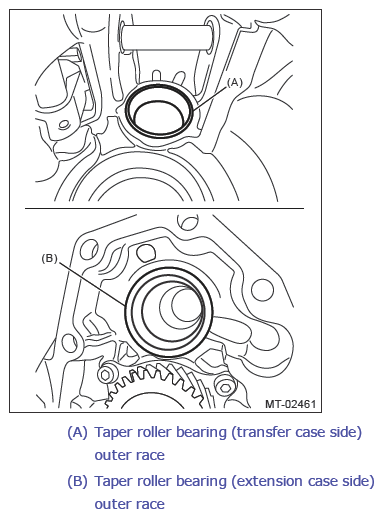

  6. Remove the taper roller bearing outer race.
Fig 2: Identifying Taper Roller Bearing
G11267846Courtesy of SUBARU OF AMERICA, INC.
