Reverse Idler Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Switches and Harness>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
  4. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transmission Case>REMOVAL .
  5. Remove the drive pinion shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Drive Pinion Shaft Assembly>REMOVAL .
  6. Remove the main shaft assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Main Shaft Assembly>REMOVAL .
  7. Remove the front differential assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Front Differential Assembly>REMOVAL .
  8. Shift into 4th.
  9. Remove the snap ring.
    Fig 1: Removing Snap Ring
    G08582136Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the reverse idler gear shaft securing bolt.
    Fig 2: Locating Reverse Idler Gear Shaft Securing Bolts
    G09482759Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the reverse idler gear shaft by pushing it out.
    NOTE: Support the reverse idler gear assembly with hands to avoid collapsing.

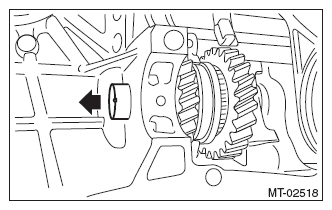

    Fig 3: Removing Reverse Idler Gear
    G08582138Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the reverse idler gear.
  13. Remove the reverse idler gear bushing.
Fig 4: Identifying Idler Gear Bushing
G08582139Courtesy of SUBARU OF AMERICA, INC.
