Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Manual Transmission Assembly>REMOVAL .
  2. Remove the transfer case together with the extension case assembly. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transfer Case and Extension Case Assembly>REMOVAL .
  3. Remove the transmission case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT)>Transmission Case>REMOVAL .
  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.

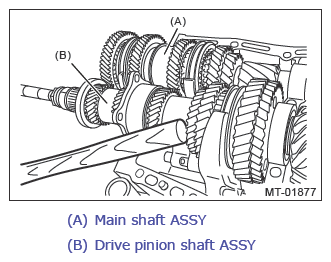

    Fig 1: Identifying Main Shaft ASSY And Drive Pinion Shaft ASSY
    G11267931Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the main shaft assembly.
