Shifter Fork and Rod: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the 1st-2nd fork rod to the 1st-2nd shifter fork through the hole on the rear of the transmission case.
  2. Align the holes on the 1st-2nd fork rod and 1st-2nd shifter fork, and drive the straight pin into these holes using the ST to fix.
    NOTE: Use a new straight pin.

    ST 398791700 SPRING PIN REMOVER 2

    Fig 1: Identifying 1st-2nd Shifter Fork, 1st-2nd Fork Rod And Straight Pin
    G10268885Courtesy of SUBARU OF AMERICA, INC.
  3. Install the 3rd-4th fork rod to the 3rd-4th shifter fork through the hole on the rear of the transmission case.
  4. Align the holes on the 3rd-4th fork rod and 3rd-4th shifter fork, and drive the straight pin into these holes using the ST to fix.
    NOTE:
    • Use a new straight pin.
    • Set other fork rods to neutral.
    • Check that the positions of interlock plunger is correct.

    ST 398791700 SPRING PIN REMOVER 2

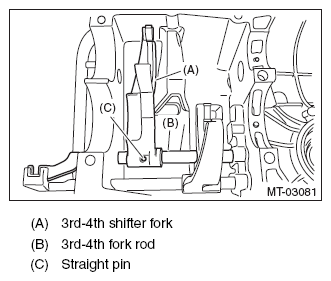

    Fig 2: Identifying 3rd-4th Shifter Fork, 3rd-4th Fork Rod And Straight Pin
    G10268886Courtesy of SUBARU OF AMERICA, INC.
  5. Install the 5th-6th fork rod into 5th-6th shifter fork, then insert through the hole on the rear of transmission case. Align the hole of the 5th-6th shifter fork with the hole on the transmission case, then insert the reverse fork rod to install the reverse shifter fork.
  6. Align the holes on the 5th-6th fork rod and 5th-6th shifter fork and the holes on the reverse fork rod and reverse shifter fork, and drive the straight pin into these holes using the ST to fix.
    NOTE:
    • Use a new straight pin.
    • Set other fork rods to neutral.
    • Check that the positions of interlock plunger is correct.

    ST 398791700 SPRING PIN REMOVER 2

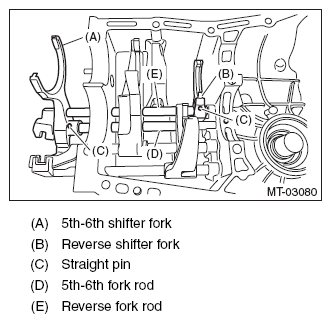

    Fig 3: Aligning Holes On 5th-6th Fork Rod And 5th-6th Shifter Fork
    G10268887Courtesy of SUBARU OF AMERICA, INC.
  7. Install the check ball plugs, check ball springs and check balls.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

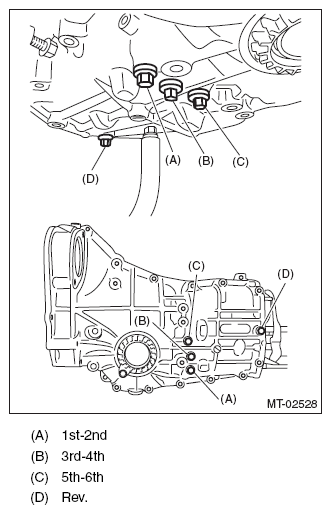

    Fig 4: Identifying Check Ball Plugs, Check Ball Springs And Check Balls
    G10268888Courtesy of SUBARU OF AMERICA, INC.
  8. Install the reverse idler gear assembly. <Ref. to INSTALLATION , Reverse Idler Gear.>
  9. Install the front differential assembly. <Ref. to INSTALLATION , Front Differential Assembly.>
  10. Install the main shaft assembly. <Ref. to INSTALLATION , Main Shaft Assembly for Single-Range.>
  11. Install the drive pinion shaft assembly. <Ref. to INSTALLATION , Drive Pinion Shaft Assembly.>
  12. Install the transmission case. <Ref. to INSTALLATION , Transmission Case.>
  13. Install the transfer case together with the extension case assembly. <Ref. to INSTALLATION , Transfer Case and Extension Case Assembly.>
  14. Install the back-up light switch and the neutral position switch. <Ref. to INSTALLATION , Switches and Harness.>
  15. Install the manual transmission assembly to the vehicle. <Ref. to INSTALLATION , Manual Transmission Assembly.>
