Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine from vehicle. Refer to REMOVAL .
  2. Remove the crank pulley. Refer to REMOVAL .
  3. Remove the chain cover. Refer to REMOVAL .
  4. Remove the timing chain assembly. Refer to REMOVAL .
  5. Remove the cam sprocket. Refer to REMOVAL .
  6. Remove the crank sprocket. Refer to REMOVAL .
  7. Remove the camshaft. Refer to REMOVAL .

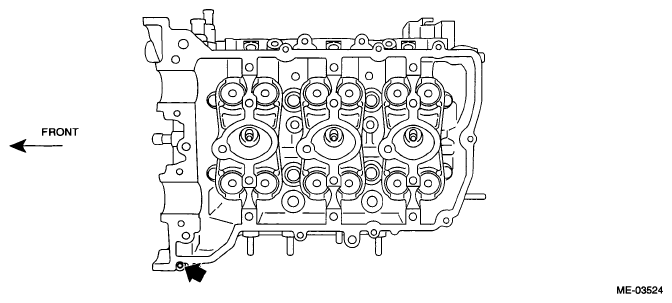

  8. Remove the seal bolt shown in the figure.
    Fig 1: Locating Cylinder Head Sealing Bolt
    G05667861Courtesy of SUBARU OF AMERICA, INC.

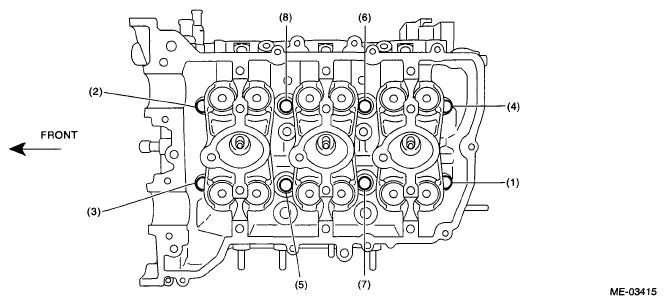

  9. Remove the cylinder head bolts in the numerical order as shown in the figure.
    NOTE: Leave bolts (2) and (4) engaged by three or four threads to prevent the cylinder head from falling.
    Fig 2: Identifying Cylinder Head Bolts Removal Sequence
    G05667862Courtesy of SUBARU OF AMERICA, INC.
  10. While tapping the cylinder head with a plastic hammer, separate it from cylinder block.
  11. Remove the bolts (2) and (4) to remove cylinder head.
  12. Remove the cylinder head gasket.
    CAUTION: Be careful not to scratch the mating surface of cylinder head and cylinder block.
  13. Similarly, remove the cylinder head (RH).
