Section 4 (Engine Mechanical (H6DO)): Camshaft: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine from vehicle. Refer to REMOVAL .
  2. Remove the crank pulley. Refer to REMOVAL .
  3. Remove the chain cover. Refer to REMOVAL .
  4. Remove the timing chain assembly. Refer to REMOVAL .
  5. Remove the cam sprocket. Refer to REMOVAL .
  6. Remove the crank sprocket. Refer to REMOVAL .
  7. Remove the exhaust oil flow control solenoid valve. Refer to REMOVAL .
  8. Remove the camshaft position sensor. Refer to REMOVAL .
  9. Loosen the rocker cover bolts in the order indicated in the figure, and remove the rocker cover.
    • LH side

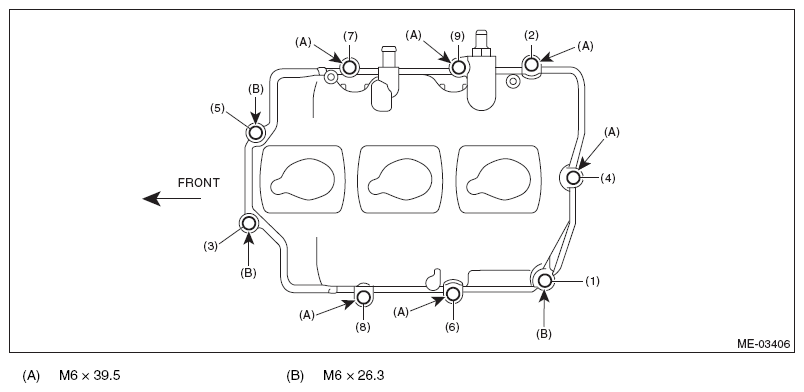

      Fig 1: Identifying Rocker Cover Bolts Loosening Sequence (LH Side)
      G08581365Courtesy of SUBARU OF AMERICA, INC.
    • RH side

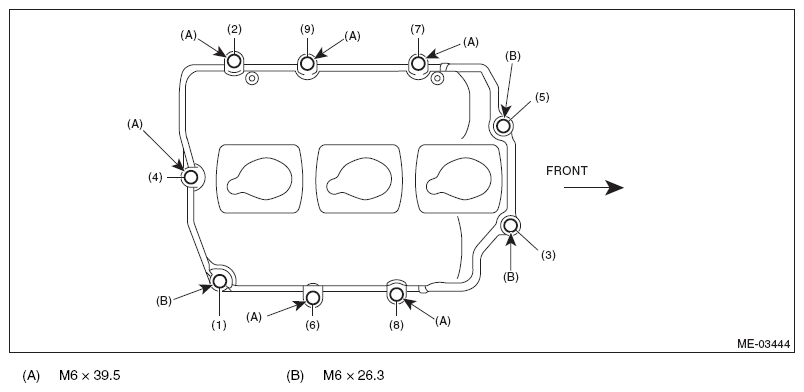

      Fig 2: Identifying Rocker Cover Bolts Loosening Sequence (RH Side)
      G08581366Courtesy of SUBARU OF AMERICA, INC.
  10. Loosen the camshaft cap bolts equally, a little at a time in numerical sequence, as shown in the figure.

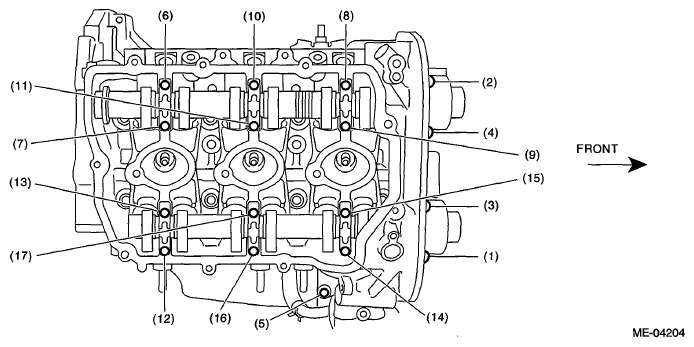

    Fig 3: Identifying Camshaft Cap Bolts Loosening Sequence
    G06649857Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the camshaft caps and camshaft (RH).
    NOTE: Arrange camshaft caps in order so that they can be installed in their original positions.
  12. Similarly, remove the camshaft (LH) and related parts.
