Crank Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the crank sprocket (A).

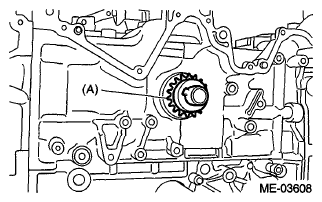

    Fig 1: Identifying Crank Sprocket
    G06342145Courtesy of SUBARU OF AMERICA, INC.
  2. Install the timing chain assembly. Refer to INSTALLATION .
  3. Install the chain cover. Refer to INSTALLATION .
  4. Install the crank pulley. Refer to INSTALLATION .
  5. Install the V-belts. Refer to INSTALLATION .
