Crank Pulley: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the crankshaft thread using compressed air.
Install the crank pulley.
Apply engine oil to the crank pulley bolt seat and thread.
Use the ST to lock the crank pulley, and tighten the crank pulley bolt.
ST1 18355AA000 PULLEY WRENCH

ST2 18334AA000 PULLEY WRENCH PIN SET

Tightening torque:

195 N.m (19.9 kgf-m, 143.8 ft-lb)

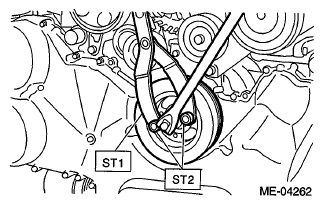

Fig 1: Removing Crank Pulley Bolt Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Install the O-ring, and install the crank pulley cover.
NOTE: Use new O-rings.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

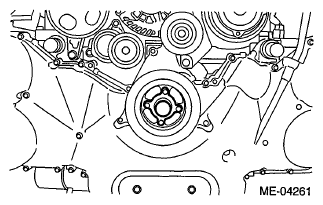

Fig 2: Identifying Crank Pulley Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Refer to INSTALLATION .
