Section 4 (Engine Mechanical (H6DO)): V-belt: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

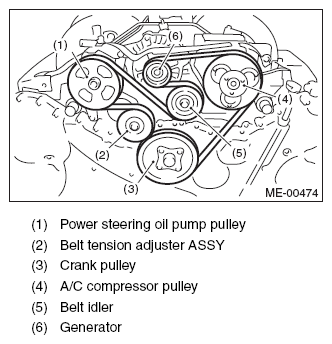

Fig 1: Engine Drive Belt Routing Diagram
G08581287Courtesy of SUBARU OF AMERICA, INC.
