PCV Hose Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not remove unless the hose and the diagnostics connector are broken.
  1. Remove the collector cover.
  2. Disconnect the connector (A) from the PCV hose assembly A, and remove the PCV hose assembly A from the rocker cover RH.

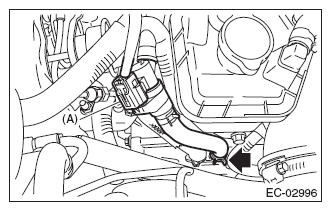

    Fig 1: Locating PCV Hose Assembly A
    G08540112Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector (A) from the PCV hose assembly B, and remove the PCV hose assembly B from the rocker cover LH.

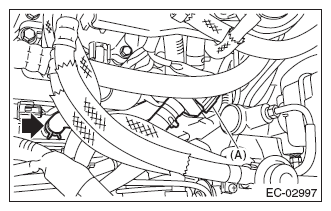

    Fig 2: Locating PCV Hose Assembly B
    G08540113Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
  5. Remove the turbocharger. < Refer to REMOVAL , Turbocharger. >
  6. Remove the intake duct. < Refer to REMOVAL , Intake Duct. >
  7. Remove the PCV hose assembly C from the intake duct and the cylinder block RH.
    NOTE: Pinch the clamp of the PCV hose assembly C by fitting the cut out in the ST with the protrusion on the clamp as shown in the figure, and unlock the clamp.

    ST 18353AA000 CLAMP PLIERS

    Fig 3: Removing/Installing PCV Hose Clamp Using Clamp Pliers
    G06650572Courtesy of SUBARU OF AMERICA, INC.
    Fig 4: Locating PCV Hose Clamp
    G08540115Courtesy of SUBARU OF AMERICA, INC.
