Trunk Lid Panel

  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim.
    1. Remove the trunk handle.
    2. Remove the clips and the trunk lid trim.
      Fig 1: Removing Trunk Lid Trim
      G06653627Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector to remove the trunk lid harness.
  4. Remove the trunk lid latch & actuator assembly. Refer to REMOVAL .
  5. Remove the trunk lid garnish. Refer to REMOVAL .
  6. Remove the trunk lid panel.
    1. Remove the left and right damper stay upper.
    2. Remove the grommet and pull out the trunk lid harness. (RH side only)
    3. Remove the left and right bolts, and remove the trunk lid panel.

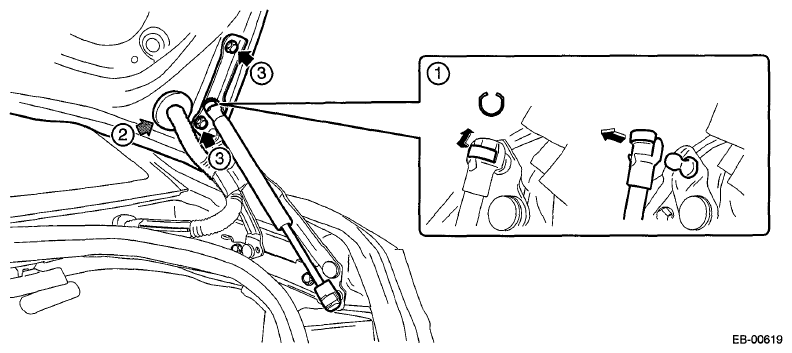

      Fig 2: Removing Left And Right Damper Stay Upper
      G06650493Courtesy of SUBARU OF AMERICA, INC.
