Trunk Lid Latch and Actuator Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the trunk lid trim. Refer to TRUNK LID TRIM .
  3. Remove the trunk lid latch and actuator assembly.
    1. Disconnect the connector.
    2. Remove the bolts, and remove the trunk lid latch & actuator assembly.

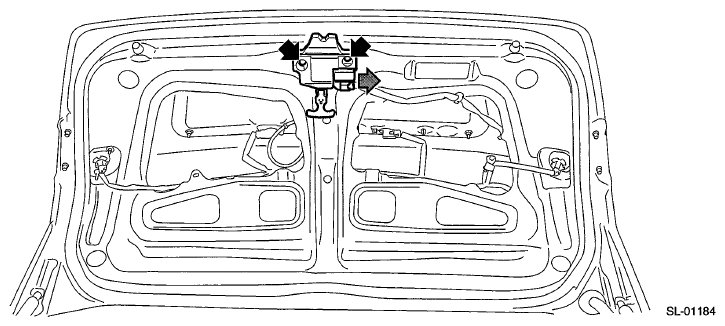

      Fig 1: Disconnecting Trunk Lid Latch And Actuator Assembly Connector
      G06653913Courtesy of SUBARU OF AMERICA, INC.
